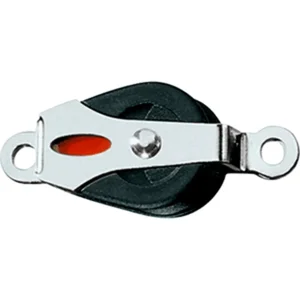

CW55136 - Ronstan Series 20 Ball Bearing Block - Single - Cheek Rivet Mount

Series 20 Ball Bearing Block - Single - Cheek Rivet Mount

Features:

• Low friction
• High static and dynamic load capacity
• Lightweight
• Suitable for screw or pop rivet mounting
• Precision molded Acetal sheaves running on stainless steel or Torlon® ball bearings provide high performance & low friction

Applications:

• Dinghy control lines
• Dinghy Vangs
• Cunninghams
• Traveller controls

Materials:

• U.V. Stabilized Acetal sheaves
• Stainless steel ball bearings
• Grade 316 stainless steel load strap and head fitting
• Impact and UV resistant, fiber reinforced Nylon cheeks

Specifications:
Sheave Ø:20mm(3/4")
Max. Rope Ø:6mm(1/4")
M.W.L.:200kg(440lbs)
B. L.:550kg(1,210lbs)
Weight:17g(0.6oz)

The Ronstan Series 20 Ball Bearing Block, part number CW55136, is a single block designed for applications requiring efficient line management. It features a cheek rivet mount, suitable for screw or pop rivet installation. This block is engineered with precision-molded Acetal sheaves and stainless steel or Torlon ball bearings, contributing to low friction and high load capacity. Constructed with UV-stabilized Acetal sheaves, Grade 316 stainless steel load strap and head fitting, and fiber-reinforced Nylon cheeks, it offers durability. With a maximum working load of 200kg (440lbs) and a breaking load of 550kg (1,210lbs), it is intended for use in dinghy control lines, vangs, cunninghams, and traveller controls. Its lightweight design (17g / 0.6oz) and 20mm (3/4") sheave diameter accommodate ropes up to 6mm (1/4") in diameter.
