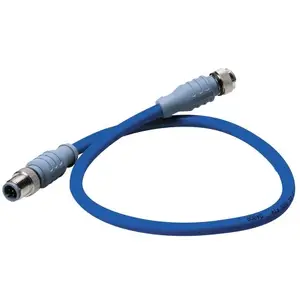

Maretron CW47015 5 Meter Blue Double-Ended Cordset

Maretron 5 Meter Double-Ended Cordset - Blue

This durable cordset is designed for reliable connections in marine applications. With high-quality materials and construction, it ensures optimal performance and safety.

Mechanical Specifications:

• Contact Carrier Material/Color: Thermoplastic PUR/Blue-Gray
• Molded Body Material/Color: Thermoplastic PUR/Blue-Gray
• Contact Material/Plating: Brass/Gold
• Coupling Nut Material/Plating: Brass/Nickel
• Connector Outside Diameter: 0.59 inches

Electrical Specifications:

• Current Rating: 4.0 Amps
• Voltage Rating: 250 V

Cable Specifications:

• Outer Jacket Material/Color: PVC/Gray
• Conductor Insulation Material: PE (data pair), PVC (power pair)
• Number of Conductors: 2x16 (1.29mm) AWG, Data 2x20 (0.81mm) AWG, 20 (0.81mm) AWG Drain Wire
• Shielding: Foil (Overall), Foil (Power Pair), Foil (Data Pair)

Environmental Ratings:

• Protection Class: IEC IP68, NEMA 1, 3, 4, 6P
• Temperature Rating: -40°C to 80°C (-40°F to 176°F)

Approvals:

• (Cable) UL: PLTC 75°C Sunlight Resistant E90625, AWM 80°C 300V
• (Cable) CSA: CMX-OUTDOOR-CMG LL54185 75°C, AWM I/II A/B 80°C 300V FT4
• NMEA: NMEA 2000 Approved
• IEC: IEC 61162-3
