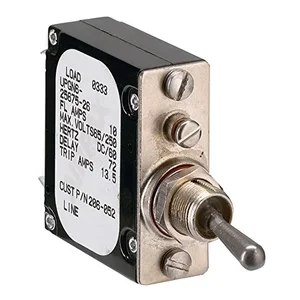

Paneltronics CW29831 20 Amp Magnetic Waterproof A-Frame Circuit Breaker

Out of Stock
Condition: New

$31.57  $42.62
 Free Shipping for this Item

Product Overview

The 20 Amp Magnetic Waterproof A-Frame Circuit Breaker is designed for marine electrical systems, ensuring reliable protection for your circuits. This breaker is ideal for both AC and DC applications and is built to withstand the harsh environments typical in boating.

Technical Specifications

Key Features:<\/b>
  • Branch AC or DC circuit breaker suitable for Paneltronics electrical distribution panels.
  • Complies with American Boat and Yacht Council (ABYC) standards for non-ignition protected circuit breakers.
  • UL Recognized (UL 1077) for use in the USA and CSA Certified for use in Canada.
  • Trip-free mechanism ensuring reliability (ABYC E-11.10.1.5.4 and E-11.10.2.1.1).
  • Manual reset feature providing user control (ABYC E-11.10.1.5.6 and E-11.10.2.1.1).
Specifications:<\/b>
  • Handle Color: Metal with Silicon rubber seal.
  • Maximum Amperage: 50 Amps.
  • Maximum Voltage/AIC: 32 VDC/2500 Amps without Back-up fuse (ABYC E-11.10.1.5.5).
  • Rated for 10,000 actuations at rated current and voltage.
  • Electrical Hardware: Screw 10-32 x 3/8" pan combo head (P/N 197-188).
  • Mounting Hardware: Hex nut 1/2-32 (included), Lockwasher 1/2" internal tooth (included).
  • Optional Boot: Black silicone rubber (P/N 048-015).

Product Details

  • Manufacturer:
  • Model Number:
  • ASIN:
  • UPC:
  • Condition:
  • Weight:
  • Dimensions:
  • Updated:
  • Added:
  • Country of Origin:
  • Paneltronics
  • CW29831
  • B000OTOP8K
  • 602290201435
  • New
  • 1 lbs
  • 3 X 3 X 3
  • Feb 19, 2026
  • Apr 20, 2021
  • United States
Product Identifiers: Brand: Paneltronics • Part #: CW29831 • UPC: 602290201435 • ASIN: B000OTOP8K • Category: Consumer Electronics

Paneltronics CW29831 20 Amp Magnetic Waterproof A-Frame Circuit Breaker
