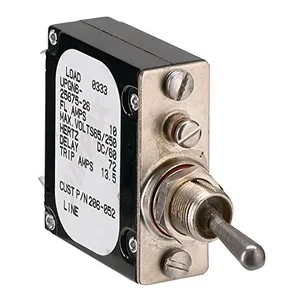

Paneltronics CW29829 10 Amp A-Frame Magnetic Circuit Breaker - Waterproof

Paneltronics 10 Amp A-Frame Magnetic Circuit Breaker is designed for superior performance in marine environments.

Features:

• Branch AC or DC circuit breaker suitable for Paneltronics electrical distribution panels.
• Complies with American Boat and Yacht Council (ABYC) Standards for non-ignition protected circuit breakers.
• UL Recognized (UL 1077) for use in the U.S.A., and CSA Certified for Canada.
• Trip free mechanism for reliable operation.
• Manual reset function for user convenience.

Specifications:

• Handle Color: Metal with Silicone rubber seal.
• Maximum Amperage: 50 Amps.
• Maximum Voltage / AIC: 32 VDC / 2,500 Amps (no Back-up Fuse).
• Rated for 10,000 switch cycles at rated current and voltage.
• Electrical Hardware: Screw 10-32 x 3/8" pan combo head.
• Mounting Hardware: Hex nut 1/2-32 (included with circuit breaker).
• Lockwasher: 1/2" internal tooth (included with circuit breaker).
• Optional Boot: Black silicone rubber available.
