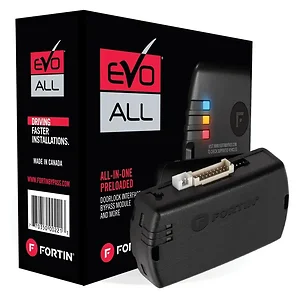

CSPEVOALL - Crimestopper ALL N1 DATA MODUL 2000+

• Universal all-in-one data bypass and interface module;• Compatible with low-current ignition vehicles;• 3 onboard LEDs for simple programming and diagnostic;• Preloaded, updateable firmware;• 2-way data port for data-to-data communication to remote start, combination & security systems;• 3 CANbus controllers;• 3 general-purpose controllers--J1850, Class-2, encrypted key, etc.;• 2 onboard relays for easier installation on vehicle--SPDT and DPDT;• 1 analog controller 0 to 12-volt DC at 2 0mV steps (Passlock(R), MUX);• 20-wire general purpose plug for wire-to-wire connection to nondatalink-equipped remote-start & security systems;• Self-learning algorithm automatically detects the vehicle during programming & adjusts accordingly;• Includes control module, installation cables, 20-pin general-purpose harness, 6-pin high-power harness, 4-pin Fortin(R) 2-way datalink harness, and 5-pin CANbus harness;
