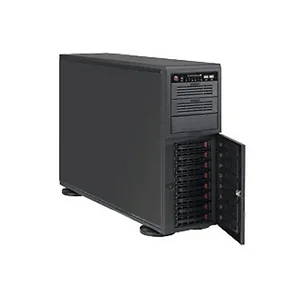

CSE743TQ1200BSQ - Supermicro Case CSE-743TQ-1200B-SQ 4U 8x3.5inch SAS-SATA Bays USB3.0 1200W Black Retail

Processor Support
Supports dual, single Intel / AMD processors Expansion Slots
7 x Full-Length PCI Expansion Slots Drive Bays
Hotswap:
8 x 3.5" Hot-swap SAS/SATA Drive Bays
SAS or Enterprise SATA HDD Only Recommended
Peripheral Bays:
3 x 5.25 Peripheral Drive Bay
Drive Bays are 90 Rotatable SAS/SATA Backplane
SAS / SATA Hard Drive Backplane w/AMI MG9072 Front Panel
Buttons:
Power On/Off Button
System Reset Button
LEDs
Power LED
Hard drive activity LED
2x Network activity LEDs
System Information LED
Power fail LED
Ports
2 x USB 3.0 Ports System Cooling
Fans:
2 x 80mm PWM Super Quiet Fans
1 x 92mm PWM Super Quiet Rear Fan
System Monitoring
Chassis Intrusion Switch Operating Environment (System)
Operating Temperature Range:
10 35 C (50 95 F)
Non-Operating Temperature Range:
-40 70 C (-40 158 F)
Humidity Range:
8 90% Non-Condensing
Non-Operating Humidity Range:
5 95% Non-Condensing Power Supply
1200W high-efficiency power supply w/ PMBus
AC Output:
1000W 100-114.9V 50-60Hz 12 Amp
1200Amp 114.9 240V 50/60Hz 12-8 Amps
DC Output:
(1000W / 12000W Max)
+3.3V 20A 20A
+5V 20A 20A
+12V 83A 99A
-12V 0.3A 0.3A
+5VSB 3A 3A
Note:
Max. continuous combined load on +3.3V and +5V output shall not exceed 120W.
Certification:
80 PLUS PLATINUM Certified Regulatory (Power Supply)
USA - UL listed
Canada - CUL listed
Germany - TUV Certified
EN 60950/IEC 60950-Compliant
CB Report
CCC Certification Color
Black Form Factor
4U chassis support for max. motherboard size - 12" x 13" E-ATX Item Dimension (L"xW"xH")
25.5 x 17.2 x 5.2

Weight
72.00 lb

Warranty Information
1 Year
