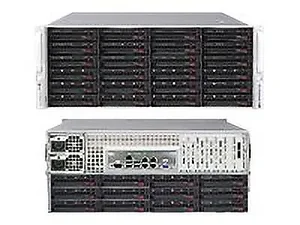

Supermicro CSE-847E16-R1K28LPB(REFUR SuperServer 6047R-E1R36L Server Barebone System - 4U Rack-mountable - Socket R LGA-

Form Factor
4U chassis - supports for maximum motherboard sizes: 13.68" x 13", E-ATX and ATX motherboards
Processor Support
Dual and Single Intel and AMD processors Available Color
Black Expansion Slots
7 low-profile expansion slot(s) Drive Bays
36 x 3.5" hot-swap HDD bays for server chassis Front Panel
Buttons
Power On/Off button
System Reset Button
LEDs
2 Network Activity LEDs
Fan Fail/System Over Heat LED
HDD activity LED
Power Status LED
Systems Cooling
Fans
7 x 8cm hot-swap redundant PWM cooling fan(s)
System Monitoring
Chassis intrusion switch
Operating Environment (System)
Operating Temperature Range
5^oC - 35^oC (41^oF - 95^oF)
Non-Operating Temperature Range
-40^oC - 70^oC (-40^oF - 158^oF)
Operating Relative Humidity Range
8% - 90% (non-condensing)
Non-Operating Relative Humidity Range
5% - 95% (non-condensing)
Power Supply
1U 1280W Redundant Platinum 95%+ Super Quiet Power Supply with PMbus
Power Efficiency
95%
Total Output Power and Input
1000W with Input 100 - 140Vac
1280W with Input 180 - 240Vac
AC Input Frequency
50-60Hz
Dimensions (L x W x H)
336 x 76 x 40 mm
Output Type
Backplanes (gold finger)
-12V
Max: NAA
+12V
Max: 83A / Min: 0.5A (100Vac - 140Vac)
Max: 106.7A / Min: 0.5A (180Vac - 240Vac)
+5Vsb
Max: 4A / Min: 0A
+12Vsb
Max: NAA
Power Distributor
PDB-PT847-8824
O/P: 12V/135
+5V Max: 100
+3.3V Max: 30
-12V Max: 0.6
Certification
Platinum Certified
Regulatory (Power Supply)
Power Supply Safety / EMC
BSMI
CCC
CE/EMC
FCC class B
TUV/CB
UL/CUL
Item Dimension (L"x W"x H")
40 x 28 x 18
Weight
146.00 LB
Warranty Information
1 Year
