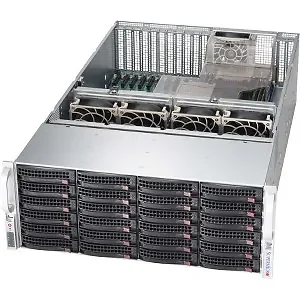

Supermicro CSE-846XE2C-R1K23B Case CSE-846XE2C-R1K23B 4U 24x3.5 Hot-swap SATA/SAS 1200W RPS ATX/EATX Brown Box

Form Factor
4U chassis support for max. motherboard size - 13.68" x 13" E-ATX, 12" x 10" ATX and and 15.2" x 13.2"
Processor Support
Dual and Single Intel and AMD processors
Dimensions
Available Color:Black
Expansion Slots
7 full-height and full-length expansion slot(s)
4 full-height and half-length expansion slot(s)
Drive Bays
24 x 3.5" hot-swap SAS/SATA drive bay with SES3
Backplane
24-port 4U SAS3 12Gbps dual-expander backplane, support up to 24x 3.5-inch SAS3/SATA3 HDD/SSD
Peripheral Drives
Optional 2 x 2.5" hot-swap drive bay
Optional 2 x 3.5" internal fixed drive bay
Optional 4 x 2.5" internal fixed drive bay
Front Panel
Buttons:Power On/Off button
System Reset Button
LEDs:2 Network Activity LEDs
Fan Fail/System Over Heat LED
HDD activity LED
Power Status LED
Power Fail LED
Motherboard (for CSE- 846XE2C-R1K23B)
X9DRX+-F
X10DRX
Systems Cooling
Fans:4 x 92x38mm Hot-Swap Cooling Fans
1 x 8cm hot-swap exhaust fan(s) and air shroud
System Monitoring
Chassis intrusion switch
Operating Environment (System)
Operating Temperature Range:5^oC - 35^oC (41^oF - 95^oF)
Non-Operating Temperature Range:-40^oC - 60^oC (-40^oF - 140^oF)
Operating Relative Humidity Range:8% - 90% (non-condensing)
Non-Operating Relative Humidity Range:5% - 95% (non-condensing)
Power Supply
1U 1200W/1000W Titanium Power Supply W/PMbus W76xL360xH40mm
Power Efficiency:96%
Total Output: Power and Input:1000W with Input 100 - 127Vac
1200W with Input 200 - 240Vac
AC Input Frequency:50-60Hz
Dimensions (L x W x H):336 x 76 x 40 mm
Output Type:Backplanes (gold finger)
+12V:Max: 83A (100Vac - 127Vac)
Max: 100A (200Vac - 240Vac)
+5Vsb:Max: 4A / Min: 0A
Power Distributor:PDB-PT418-B6824
O/P: 12V/256
+5V Max: 50
+3.3V Max: 30
-12V Max: 0.6
Certification: Titanium Certified
Regulatory (Power Supply)
Power Supply Safety / EMC:BSMI
CCC
CE/EMC
FCC class A
UL/CB
UL/CUL
Item Dimension (L inchxW inchxH inch)
42 x 28 x 18 Weight
128.00lb Warranty Information
1 Year
