Out of Stock
/ 2 Sold
Condition: New
Form Factor
4U Chassis
Drive Bays
JBOD Chassis: Up to 24 x 3.5" hot-swap SAS/SATA drive bay with SES2
Backplane
BPN-SAS3-846EL2 (SAS 12G dual expander backplane, with LSI SAS3 expander, support 24x 3.5" SATA3/SAS2/SAS3 drives, with 8x mini-SAS HD connectors)
Front Panel
Buttons:
- Power On/Off Button
- System Reset Button
- Unit Identification (UID) Button
LEDs: 1 Network Activity LEDs
System Cooling
Fan:
- 3 x 8cm Hotswap Redundant PWM Cooling Fans
- 2 x 8cm Hotswap Exhaust Fans and Air Shroud
Operating Environment (System)
Operating Temperature Range: 5 C to 35 C (41 F to 95 F)
Non-Operating Temperature Range: -40 C to 60 C (-40 F to 140 F)
Operating Relative Humidity Range: 8% to 90% (Non-Condensing)
Non-Operating Relative Humidity Range: 5% to 95% (Non-Condensing)
Power Supply with Power Distributor
800/1000W Redundant Titanium Level Single Output Power Supplies
Input: 100 to 127Vac / 50/60Hz 200-240Vac / 50/60Hz
+12V:
- Max: 66.7A Min. 0A (100-127Vac)
- Max: 83A Min. 0A (200-240Vac)
5V SB: Max 4A / Min: 0A
Certification: 80PLUS Titanium Level Certified
Regulatory (Power Supply)
USA - UL listed, FCC
Canada - CUL listed
Germany - TUV Certified
Europe/CE Mark
EN 60950/IEC 60950-Compliant
Weight
80.00 lb
Warranty Information
1 Year

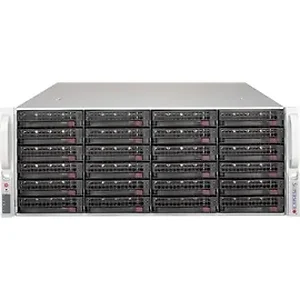

Supermicro CSE-846BE2C-R1K03JBOD Case CSE-846BE2C-R1K03JBOD 4U JBOD 24x3.5inch Hotswap SAS/SATA 1000W Brown Box
