CSE-842XTQC-R804B - Supermicro CS CSE-842XTQC-R804B 4U | Aztek Computers
29+Years

Received! Our sales team will contact you soon.

SKU: ZP6TJ6J2TW |  Mfg. Part: CSE-842XTQC-R804B  | UPC: 672042370016  |  0 Reviews  |     Share Make an offer

CSE-842XTQC-R804B - Supermicro CS CSE-842XTQC-R804B 4U 5x3.5hot-swap SAS3 SATA3 800W Brown Box

Pre Order
Expected availability: 1-2 weeks
Condition: New

$987.64  $1,333.31
Need 10+? Request a volume quote
 Free Shipping for this Item

Product Overview

CHASSIS, 4U CHASSIS 5X3.5INCH HOTSWAP SAS3 HDD W/ RED. 800W PWS,USB3, BLACK

Expert Overview

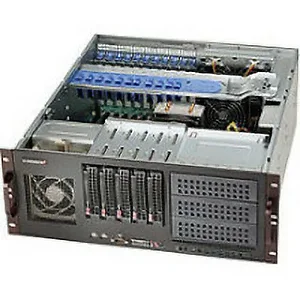

The Supermicro CSE-842XTQC-R804B is a 4U rackmount server chassis designed for IT environments requiring high-density storage and redundant power. This black chassis supports E-ATX, ATX, and MicroATX motherboards, accommodating both dual and single Intel and AMD processors. It features five 3.5-inch hot-swap SAS3/SATA drive bays, facilitated by a 5-port backplane, making it suitable for storage-intensive applications or virtualized environments. The system includes an 800W 1U redundant power supply, offering 94% power efficiency and ensuring system uptime through power redundancy. Cooling is managed by one 9cm hot-swap fan and two 8cm hot-swap exhaust fans. Expansion capabilities include seven full-height, full-length slots and four full-height, half-length slots, providing flexibility for various add-in cards. Front panel connectivity includes two USB 3.0 ports and one Com Port. This chassis is a practical solution for businesses building reliable, scalable server infrastructure.

Technical Specifications

Form Factor
4U rackmount chassis - supports for maximum motherboard sizes: 15.2" x 13.2" E-ATX/ATX/MicroATX Processor Support
Dual and Single Intel and AMD processors Available Color
Black Expansion Slots
7 full-height and full-length expansion slot(s)
4 full-height and half-length expansion slot(s) Drive Bays
5 x 3.5" hot-swap SAS3/SATA drive bay Backplane
4U 5-Port Backplane Supports 5x3.5" SAS3/SATA3 HDD/SSD for X11 Platform,HF,RoHS Peripheral Drives
3 x standard 5.25" drive bay Front Panel
Buttons
Power On/Off button
System Reset Button
LEDs
2 Network Activity LEDs
Fan Fail/System Over Heat LED
HDD activity LED
Power Status LED
Ports
2x USB 3.0 Port(s)
1x Com Port(s) Systems Cooling
Fans
1 x 9cm hot-swap cooling fan(s)
2 x 8cm hot-swap exhaust fan(s) and air shroud System Monitoring
Chassis intrusion switch Operating Environment (System)
Operating Temperature Range
5oC - 35oC (41oF - 95oF)
Non-Operating Temperature Range
-40oC - 70oC (-40oF - 158oF)
Operating Relative Humidity Range
8% - 90% (non-condensing)
Non-Operating Relative Humidity Range
5% - 95% (non-condensing) Power Supply
800W 1U redundant power supply
Power Efficiency
94%
Total Output Power and Input
750W with Input 100 - 127Vac
800W with Input 200 - 240Vac
800W with Input 230 - 240Vdc
AC Input Frequency
50-60Hz
Dimensions (L x W x H)
220 x 54.5 x 40.25 mm
Output Type Backplanes (gold finger)
+12V
Max: 62.5A / Min: 0.5A (100Vac - 127Vac)
Max: 66.6A / Min: 0.5A (200Vac - 240Vac)
Max: 66.6A / Min: 0.5A (230 - 240)
+5Vsb
Max: 4A / Min: 0A
Power Distributor
PDB-PT842-8824
O/P: 12V/92A
+5V Max: 30A
+3.3V Max: 28A
-12V Max: 0.6A
Certification
Platinum Certified Regulatory (Power Supply)
Power Supply Safety / EMC
BSMI
CCC
CE/EMC
UL/CB Item Dimension (L"xW"xH")
32 x 27 x 14

Weight
88 lbs

Warranty Information
1 year

Product Details

  • Manufacturer:
  • Model Number:
  • UPC:
  • Condition:
  • Weight:
  • Dimensions:
  • Updated:
  • Added:
  • Supermicro
  • CSE-842XTQC-R804B
  • 672042370016
  • New
  • 88 lbs
  • 5 X 5 X 5
  • Jul 30, 2026
  • May 05, 2026
Product Identifiers: Brand: Supermicro • Part #: CSE-842XTQC-R804B • UPC: 672042370016 • Category: Server Power Supplies

Frequently Asked Questions

What type of drive bays are included?

The chassis features five 3.5-inch hot-swap drive bays that support both SAS3 and SATA3 HDDs/SSDs. It includes a 5-port backplane for these drives.

What is the power supply configuration?

It comes with an 800W 1U redundant power supply, which is Platinum Certified for 94% power efficiency. The power supply provides 800W with 200-240Vac input.

What cooling components are pre-installed?

The system includes one 9cm hot-swap cooling fan and two 8cm hot-swap exhaust fans, along with an air shroud, for system cooling.
