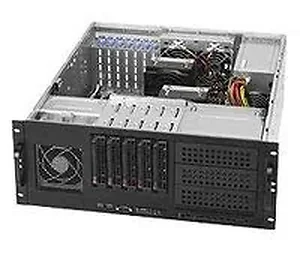

Supermicro CSE-842TQC-668B SC842TQC-668B 4U 5BAY BLK 668W

Form Factor
4U rackmount chassis - supports for maximum motherboard sizes: 12" x 13" E-ATX/ATX/MicroATX Processor Support
Dual and Single Intel and AMD processors
Available Color
Black Expansion Slots
7 full-height and full-length expansion slot(s) Drive Bays
5 x 3.5" hot-swap SAS/SATA Backplane
4U 5-Port Backplane Supports 5x3.5" SAS3/SATA3 HDD/SSD for X11 Platform,HF,RoHS Peripheral Drives
3 x standard 5.25" drive bay
Optional 1 x slim DVD-ROM drive bay Front Panel
Buttons
Power On/Off button
System Reset Button
LEDs
2 Network Activity LEDs
Fan Fail/System Over Heat LED
HDD activity LED
Power Status LED
Ports
2x USB 3.0 Port(s)
Motherboard (for CSE- 842TQC-668B)
X11SAE
X11SAE-F
X11SPi-TF
X11SPL-F
X11SPM-TF
X11SPM-TPF
X11SPM-F
Systems Cooling
Fans
1 x 9cm hot-swap cooling fan(s)
Front, 5K RPM
2 x 8cm hot-swap redundant PWM cooling fan(s)
Rear, 9.4K RPM
System Monitoring
Chassis intrusion switch Operating Environment (System)
Operating Temperature Range
5oC - 35oC (41oF - 95oF)
Non-Operating Temperature Range
-40oC - 70oC (-40oF - 158oF)
Operating Relative Humidity Range
8% - 90% (non-condensing)
Non-Operating Relative Humidity Range
5% - 95% (non-condensing)
Power Supply
PS2 668W Multi-output power supply 80PLUS Platinum
Power Efficiency
92%
Total Output Power and Input
668W with Input 100 - 240Vac
AC Input Frequency
50-60Hz
Dimensions (L x W x H)
185 x 150 x 86 mm
Output Type
24pin ATX
-12V
Max: 0.1A / Min: 0A
+12V
Max: 54A / Min: 0.2A (100Vac - 240Vac)
+5V
Max: 20A / Min: 0.1A
+3.3V
Max: 15A / Min: 0.1A
+5Vsb
Max: 2A / Min: 0A
Certification
Platinum Certified
Regulatory (Power Supply)
Power Supply Safety / EMC
BSMI
CCC
CE/EMC
FCC class B
TUV/CB
UL/CUL
Item Dimension (L"xW"xH")
29 x 26 x 14
Weight
76.00 LB
Warranty Information
1 Year
