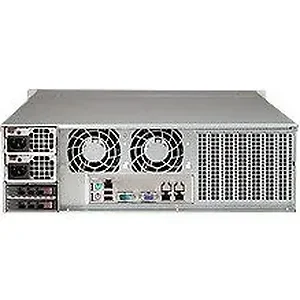

Supermicro CSE-836BE1C-R1K23B Case CSE-836BE1C-R1K23B 3U 16x3.5 inch Hot-Swap SAS/SATA Drive Bay with SES2 Brown Box

Form Factor
3U chassis - supports for maximum motherboard sizes: 13.68" x 13" E-ATX and ATX Processor Support
Dual and Single Intel and AMD processors Available Color
Black Expansion Slots
7 full-height and full-length expansion slot(s) Drive Bays
16 x 3.5" hot-swap SAS/SATA drive bay with SES2
Optional 2 x 2.5" hot-swap drive bay Backplane
16-port 3U SAS3 12Gbps single-expander backplane, support up to 16x 3.5-inch SAS3/SATA3 HDD/SSD Front Panel
Buttons:
- Power On/Off button
- System Reset Button
LEDs:
- 2 Network Activity LEDs
- HDD activity LED
- Power Status LED
- Power Fail LED
- System Information LED System Monitoring
Chassis intrusion switch Operating Environment (System)
- Operating Temperature Range: 5^oC - 35^oC (41^oF - 95^oF)
- Non-Operating Temperature Range: -40^oC - 70^oC (-40^oF - 158^oF)
- Operating Relative Humidity Range: 8% - 90% (non-condensing)
- Non-Operating Relative Humidity Range: 5% - 95% (non-condensing) Power Supply
1U 1200W/1000W Titanium Power Supply W/PMbus W76xL360xH40mm
Power Efficiency: 96%
Total Output Power and Input:
- 1000W with Input 100 - 127Vac
- 1200W with Input 200 - 240Vac
AC Input Frequency: 50-60Hz
Output Type: Backplanes (gold finger)
+12V:
- Max: 83A (100Vac - 127Vac)
- Max: 100A (200Vac - 240Vac)
- 5Vsb: Max: 4A / Min: 0A
Power Distributor:
- PDB-PT826-8824
- O/P: 12V/135A
- +5V Max: 40A
- +3.3V Max: 24A
- -12V Max: 0.6A
Certification: Titanium Certified Regulatory (Power Supply)
Power Supply Safety / EMC:
- BSMI
- CCC
- CE/EMC
- FCC class A
- UL/CB
- UL/CUL Item Dimension ( L inch x W inch x H inch)
40 x 27 x 13 Weight
85.00 lb Warranty Information
1 Year
