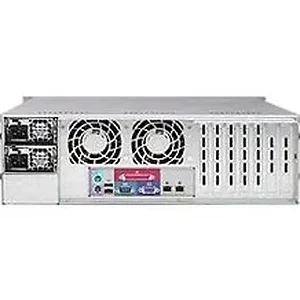

CSE-835TQC-R802B - Supermicro BLACK 3U 835 CHASSIS W/ REDUNDANT 800W PWS, ROHS

Form Factor
3U chassis support for motherboard size - E-ATX and ATX. Processor Support
Dual and Single Intel and AMD processors Available Color
Black Expansion Slots
7 full-height and full-length expansion slot(s) Drive Bays
8 x 3.5" hot-swap SAS/SATA Backplane
3U 8-Port Backplane Supports 8 x 3.5" SAS3/SATA3 HDD/SSD for X11 Platform Peripheral Drives
1 x slim DVD-ROM drive bay Front Panel
Buttons
Power On/Off button
System Reset Button LEDs
2 Network Activity LEDs
HDD activity LED
Power LED
Power Fail LED
System Overheat LED Systems Cooling
Fans
3 x 80mm Hot-swap PWM Fans
2 x 80mm rear hot-swap exhaust PWM fan(s) System Monitoring
Chassis intrusion switch Operating Environment (System)
Operating Temperature Range
5^oC - 35^oC (41^oF - 95^oF) Non-Operating Temperature Range
-40^oC - 70^oC (-40^oF - 158^oF) Operating Relative Humidity Range
8% - 90% (non-condensing) Non-Operating Relative Humidity Range
5% - 95% (non-condensing) Power Supply
1U 800W Redundant Power Supply 76mm width, W/PMbus, Titanium Power Efficiency
96% Total Output Power and Input
800W with Input 100 - 240Vac
800W with Input 200 - 240Vdc AC Input Frequency
50-60Hz Output Type
Backplanes (gold finger)
