Technical Specifications
CHAS EATX 3U BLK AIR SHRD 8X 3.5 SAS/SATA 6FH 650W
Supermicro's SC833 is one of the main flagship series of high-end]U chassis. With advanced airflow / thermal-control design, the SC833 is optimized for the next generation Xeon platform.

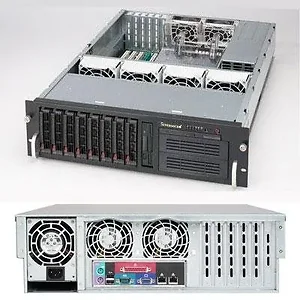

Product Description Supermicro SC833 T-650B - rack-mountable - 3U - extended ATX
Form Factor Rack-mountable - 3U
Dimensions (WxDxH) 17.7 in x 25.5 in x 5.2 in
Color Black
Built-in Devices LED panel, floppy drive
Installed Fans Qty 6
Supported Mainboards Extended ATX
Server Storage Bays SATA/SAS - hot-swap
System Cabinet Features Chassis intrusion detection
Power Device Power supply 650 Watt
Voltage Required AC 120/230 V ( 50/60 Hz )
General
Form Factor Rack-mountable - 3U
Max Mainboard Size Extended ATX
Supported Mainboards Extended ATX
Front Accessible Bays Qty 4
Hot-Swap Bays Qty 8
Server Swappable Drive Interface SATA/SAS
Built-in Devices LED panel, floppy drive
Width 17.7 in
Depth 25.5 in
Height 5.2 in
Color Black
Fans Internal : 4 x 9 cm - ( 4 installed) Rear : 2 x 8 cm - ( 2 installed)
System Cabinet Features Chassis intrusion detection
Expansion / Connectivity
Expansion Bays Total (Free)\ ( 2 ) x front accessible - 5.25" x 1/2H 8 ( 8 ) x hot-swap - 3.5" x 1/3H 1 ( 1 ) x front accessible - 5.25" Slim Line 1 ( 0 ) x front accessible - 5.25" x 1/3H
Expansion Slots Total (Free) 6 expansion slot
Miscellaneous
Included Accessories SAS backplane
Compliant Standards CE, UL, TUV, cUL, EN 60950, IEC 60950, CCC, FCC
Power
Power Device Power supply
Installed Qty 1
Max Supported Qty 1
Voltage Required AC 120/230 V ( 50/60 Hz )
Power Provided 650 Watt
Power Supply Features Power Factor Correction (PFC)
Environmental Parameters
Min Operating Temperature 50 °F
Max Operating Temperature 95 °F
Humidity Range Operating 8 - 90%
