Technical Specifications

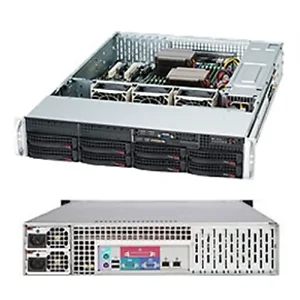

Supermicro Case CSE-825TQ-R700LPB(3YR) 2U 700W 8x3.5inch SAS/SATA Hot-Swap ATX Retail
1. 700W Redundant Power Supply
2. 8x 3.5 Hot-swap SAS / SATA Drive
Bays
3. 1x Slim DVD-ROM Drive
4. Adjustable Air Shroud
5. 7x Low-profile, Full-length I/O
Expansion Slots
6. 1x Serial, 2x USB Front Access I/O
7. 2x Fixed 3.5 Drive Bays
8. Full SES2 support is available with SAS motherboards and other compatible components.
Form Factor
2U chassis support for motherboard size -
12 x 13, 13.68 x 13 E-ATX and 12 x 10 ATX
Processor Support
Supports dual, single Intel / AMD processors
Available Colors
Black
Expansion Slots
7x low-profile full-length expansion slots
Drive Bays
Hot-swap
8x 3.5 SAS / SATA Hot-swap drive trays SAS or enterprise SATA HDD only recommended
SAS / SATA Backplane
1x 2U SAS / SATA backplane w/ Enclosure Management
Peripheral Drives
DVD-ROM
Slim DVD-ROM drive
Front Panel
Buttons
Power On/Off button
System Reset button
LEDs
Power LED
Hard drive activity LED
2x Network activity LEDs
System Overheat LED
Power fail LED
Ports
2x USB Ports
System Cooling
Fans
3x 80mm 6300 RPM PWM fans
Power Supply
700W (1 + 1) Redundant AC-DC high-efficiency power supply w/ PFC
AC Voltage
100 - 240V, 60-50Hz, 10 - 4 Amp
+5V standby
4
Regulatory (Power Supply)
Power Supply
Safety / EMC USA - UL listed
Canada - CUL listed
Germany - TUV Certified
EN 60950/IEC 60950-Compliant
CB Report
CCC Certification
Item Dimension (LxWxH):
25.5 x 17.2 x 3.5
Weight:
50 lb
Warranty Information:
3 years
