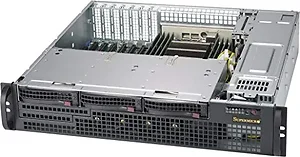

CSE-825MBTQC-R802LPB - Supermicro Case CSE-825MBTQC-R802LPB 2U 3x3.5HS SAS/SATA 800W Black Brown Box

Form Factor
2U chassis supports for maximum motherboard sizes - EE-ATX 13.68" x 13", E-ATX 12" x 13", ATX 12" x 10" motherboards Processor Support
Dual and Single Intel and AMD processors Available Color:
Black Expansion Slots
7 low-profile expansion slot(s) Drive Bays
3 x 3.5" hot-swap SAS/SATA drive bay with SGPIO
Optional 2 x 2.5" hot-swap SAS/SATA drive bay w/ full SES-II support on SAS motherboards Backplane
3-port SC825M SAS3 12Gbps TQ backplane, support up to 3x 3.5-inch SAS3/SATA3 HDD/SSD Peripheral Drives
Optional 1 x slim DVD-ROM drive bay
Optional 2 x USB 2.0 ports
Optional 1 x COM port tray Front Panel
Buttons : Power On/Off button
System Reset Button
LEDs: 2 Network Activity LEDs
HDD activity LED
Power Status LED
Power Fail LED
System Information LED Systems Cooling
Fans: 4 x 4cm high-performance counter-rotating PWM fan(s) with optimal fan(s) speed control
Optional 1 x 4cm high-performance counter-rotating PWM fan(s) with optimal fan(s) speed control Operating Environment (System)
Operating Temperature Range: 5^oC - 35^oC (41^oF - 95^oF)
Non-Operating Temperature Range: -40^oC - 70^oC (-40^oF - 158^oF)
Operating Relative Humidity Range: 8% - 90% (non-condensing)
Non-Operating Relative Humidity Range : 5% - 95% (non-condensing)
Power Supply
1U 800W Redundant Power Supply 76mm width, W/PMbus, Titanium
Power Efficiency: 96%
Total Output Power and Input: 800W with Input 100 - 240Vac
800W with Input 200 - 240Vdc
AC Input Frequency: 50-60Hz
Output Type: Backplanes (gold finger)
+12V: Max: 66A (100Vac - 240Vac)
Max: 66A (200 - 240)
+5Vsb: Max: 4A / Min: 0A
Power Distributor: PDB-PT825-8824
O/P: 12V/75
+5V Max: 30
+3.3V Max: 24
-12V Max: 0.6
Certification: 80 Plus Titanium (certification pending) Regulatory (Power Supply)
Power Supply Safety / EMC: BSMI
CCC
CE/EMC
FCC class A
TUV/CB
UL/CUL
Item Dimension ( L inch x W inch x H inch)
33 x 24 x 10
Weight
57.00lb
Warranty Information
1 Year
