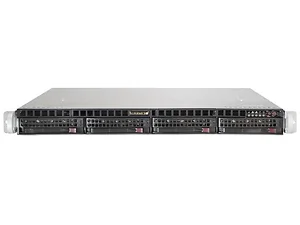

Supermicro CSE-813MF2TQC-505CB CS CSE-813MF2TQC-505CB 1U 4x3.5 Hotswap SAS SATA 500W ATX BrownBox

Form Factor
1U Chassis for motherboard support size: (12" x 10") (9.6" x 9.6") Processor Support
Dual, single Intel / AMD processors Available Color
Black Expansion Slots
1 full height expansion slot(s) Drive Bays
4 x 3.5" hot-swap SAS/SATA drive bay with SES2 Backplane
1U 4-Port 12Gbps Backplane Support 4x3.5 Peripheral Drives
Optional 1 x Slim DVD-ROM Drive Front Panel Buttons
Power On/Off button
System Reset Button LEDs
2 Network Activity LEDs
HDD activity LED
Power Status LED
System Information LED Systems Cooling Fans
4 x 40x28mm PWM fan(s)
Optional 2 x 40x28mm PWM fan(s) Operating Environment (System) Operating Temperature Range
5^oC - 35^oC (41^oF - 95^oF) Non-Operating Temperature Range
-40^oC - 70^oC (-40^oF - 158^oF) Operating Relative Humidity Range
8% - 90% (non-condensing) Non-Operating Relative Humidity Range
5% - 95% (non-condensing) Power Supply
1U 500W Multi-output power supply w/ PMbus, 80Plus Platinum Power Efficiency
93% Total Output Power and Input
500W with Input 100 - 240Vac
