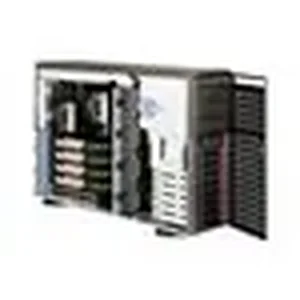

CSE-747TQ-R1620B - Supermicro SC747 TQ-R1620B

Form Factor
Tower / 4U chassis support for DP and UP ATX, E-ATX motherboards: up to size 15.2" x 13.2"

Processor Support
Supports dual, single Intel / AMD processors

Available Color
Dark Gray

Expansion Slots
Capable of housing 11x Full-Height, Full-Length expansion cards Drive Bays
Hot-swap
8x 3.5" Hot-swap SAS/SATA Drive Bays
SAS or enterprise SATA HDD only recommended
Peripheral Bay(s)
3x 5.25" drive bays in storage module - rotates 90 for Rackmount
1x 3.5" fixed drive bay

SAS / SATA Backplane
SAS / SATA Hard Drive Backplane with SES2 Front Panel
Buttons
LED Power On/Off button
System Reset button
LEDs
Power status LED
Hard drive activity LED
2x Network activity LEDs
System Overheat and Power Fail LED
Ports
2x Front USB 2.0 Ports System Cooling
Fans
4x 92x38mm 4-pin PWM Middle Cooling Fans
2x 80x38mm 4-pin PWM Rear Exhaust Fans

System Monitoring
Chassis intrusion switch Power Supply
1620W high-efficiency redundant power supply w/ PMBus
AC Input
1000W Output at 100-120V, 12-10A, 50-60Hz
1200W Output at 120-140V, 12-10A, 50-60Hz
1620W Output at 180-240V, 10.5-8A, 50-60Hz
DC Output
1000W: +12V/84A +5Vsb/4A
1200W: +12V/100A +5Vsb/4A
1620W: +12V/150A +5Vsb/4A
Certification
80PLUS Platinum Certified Regulatory (Power Supply)
Power Supply Safety / EMC
USA - UL listed, FCC
Canada - CUL listed
Germany - TUV Certified
Europe/CE Mark
EN 60950/IEC 60950-Compliant Item Dimension (L"xW"xH"):
38.6 x 17.4 x 26.6

Weight:
107.62 lb

Warranty Information:
1 Year
