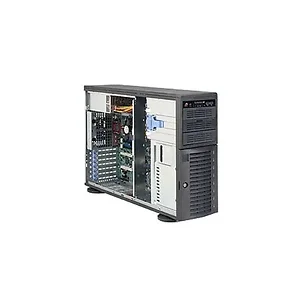

Supermicro CSE-743T-500B 500W LOW-NOISE POWER SUPPLY, 8X 3.5 INCH SAS / SATA HOT-SWAPPABLE DRIVE BAYS
Out of Stock
Condition: New
$370.83$500.62
Product Overview
Technical InformationMotherboard Supported: EATXNumber of Fans Installed: 4BaysNumber of External 5.25" Bays: 3Number of External 3.5" Bays: 8Number of Total Expansion Bays: 11I/O ExpansionsNumber of Total Expansion Slots: 7Interfaces/PortsTotal Number of USB Ports: 2Front USB: YesPower DescriptionInput Voltage: 110 V AC, 220 V ACNumber of Power Supplies Supported: 1Number of Power Supplies Installed: 1Power Supply Wattage: 500 WPhysical CharacteristicsColor: BlackCompatible Rack Unit: 4UForm Factor: Rack-mountableHeight: 7"Width: 17.8"Depth: 25.5"Weight (Approximate): 123.46 lbMiscellaneousPackage Contents: SuperChassis SC743T-500B Rackmount Enclosure4 x SATA Cable (2 Ft, Amphenol)1 x Front Panel Ribbon Cable1 x 6" Split Converter Cable8 x 1" SCA Drive Tray1 x SAS / SATA Hard Drive Backplane1 x SC743 Intel DP X8.X7 PC Air Shroud
Technical Specifications
Form Factor: 4U chassis support for max. motherboard size - 12" x 13" E-ATX
Processor Support: Supports dual, single Intel / AMD processors
Drive Bays: Hot-swap: 8x 3.5" SAS / SATA Hot-swap Drive Bays SAS or enterprise SATA HDD only recommended Peripheral Bay(s) : 3x 5.25" Peripheral Drive Bays
Backplane: SAS / SATA Hard Drive Backplane Front Panel: Buttons:Power On/Off button System Reset button LEDs:Power LED Hard drive activity LED 2x Network activity LEDs System Overheat LED Power Fail LED Ports:2x USB Ports System Cooling: Fans: 4 5000 RPM Hot-swap PWM Cooling Fans Rear exhaust fans excluded (for optimized Superquiet System) System Monitoring: Chassis intrusion switch
Power Supply: 500W AC power supply w/ PFC AC Voltage:100 - 240V, 50-60Hz, 7-3.5 Amp +5V:20 Amp +5V standby:3 Amp +12V1:17 Amp +12V2:17 Amp +12V3:17 Amp +12V4:18 Amp -12V:0.5 Amp +3.3V:15 Amp Certification: 80 PLUS Bronze Certified Regulatory (Power Supply) : Power Supply Safety / EMC: USA - UL listed, FCC Canada - CUL listed Germany - TUV Certified Europe/CE Mark EN 60950/IEC 60950-Compliant CCC
