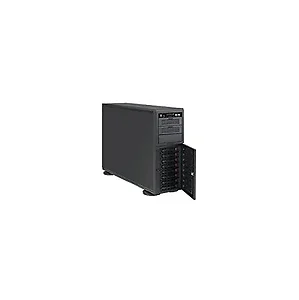

CSE-743AC-1200B-SQ(3YR) - Supermicro Case CSE-743AC-1200B-SQ 4U 8x3.5Hot-Swappable SAS3/SATA3 EATX/ATX/micro ATX 1200W B

Form Factor
4U chassis - supports for maximum motherboard sizes: 12" x 13" E-ATX and ATX Processor Support
Dual and Single Intel and AMD processors Available Color
Black Expansion Slots
7 full-height and full-length expansion slot(s) Drive Bays
8 x 3.5" hot-swap SAS/SATA drive bay with SGPIO Backplane
8-port 4U/Tower 3.5-inch SAS3/SAS2/SATA3 12Gbps backplane for SC743/SC745 chassis Peripheral Drives
2 x standard 5.25" drive bay
90 degree rotatable drive cage
Front Panel
Buttons
Power On/Off button
System Reset Button
LEDs
2 Network Activity LEDs
Fan Fail/System Over Heat LED
HDD activity LED
Power Status LED
Unit Identification (UID) LED
Ports
2x USB 3.0 Port(s) Systems Cooling
Fans
2 x 80mm PWM Chassis Middle Fans
1 x 92mm PWM Rear fan(s)
Operating Environment (System)
Operating Temperature Range
5^oC - 35^oC (41^oF - 95^oF)
Non-Operating Temperature Range
-40^oC - 70^oC (-40^oF - 158^oF)
Operating Relative Humidity Range
8% - 90% (non-condensing)
Non-Operating Relative Humidity Range
5% - 95% (non-condensing)
Power Supply
PS2/ATX 1000/1200W Multi-output power supply, platinum level, Super quiet W/PMbus
Power Efficiency
93%
Total Output Power and Input
1000W with Input 100 - 114.9Vac
1200W with Input 114.9 - 240Vac
AC Input Frequency
50-60Hz
Dimensions (L x W x H)
185 x 150 x 86 mm
Output Type
24pin ATX
-12V
Max: 0.3A / Min: 0A
+12V
Max: 83A / Min: 1A (100Vac - 115Vac)
Max: 99A / Min: 1A (115Vac - 240Vac)
+5V
Max: 20A / Min: 0.3A
+3.3V
Max: 20A / Min: 0.3A
+5Vsb
Max: 3A / Min: 0A
Certification
Platinum Certified
Regulatory (Power Supply)
Power Supply Safety / EMC
BSMI
CCC
CE/EMC
FCC class B
TUV/CB
UL/CUL
Item Dimension (L"xW"xH")
32 x 25 x 14
Weight
81.00 LB
Warranty Information
3 Years
