Technical Specifications
SUPERMICRO CASE CSE-732D2-500B MID TOWER 500W FRONT AUDIO USB2.0 DESKTOP BLACK RETAIL
1. 4x 3.5" internal SAS/SATA HDD Bays 90 rotatable HDD cage design^x 2.5" internal SAS/SATA HDD (opt.)
2. Peripheral Drive Bays: 2x 5.25" and 1x 3.5"
3. 1x 12cm Rear Exhaust Fan 1x 12cm Front Cooling Fan (opt.)
4. 7x Full-height, Full-length PCI Expansion Slots

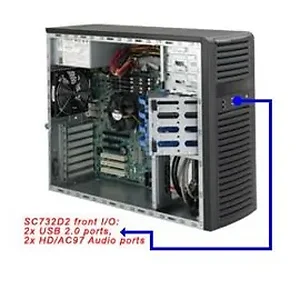

5. Front I/O ports: 2x Audio (HD/AC97), 2x USB 2.0 ports
6. High Efficiency 80Plus Power Supply
7. Cost Effective Desktop, Embedded, Workstation Chassis -------------------------
VENDOR: Supermicro
MPN: CSE-732D2-50B
UPC:
DETAIL SPECIFICATIONS
FORM FACTOR Mid-Tower chassis support for motherboard sizes - 12" x 13" E-ATX,ΐ" x 10" ATX, and 9.6" x 9.6" Micro-ATX
PROCESSOR SUPPORT Supports dual, single Intel / AMD processors AVAILABLE COLORSBlack
DRIVE BAYS INTERNAL 4x 3.5" SAS/SATA HDD Bays(90 rotatable drive cage) SAS or enterprise SATA HDD only recommended PERIPHERAL BAY 2x 5.25" peripheral drive bays 1x 3.5" peripheral drive bay
FRONT PANEL BUTTONS Power On/Off button LEDS Power status LED Hard drive activity LED Network activity LED System Overheat LED PORTS 2x Front USB 2.0 ports 2x Front HD/AC97 Audio ports
SYSTEM COOLING FANS 1x 12cm (1850rpm) rear exhaust fan 1x 12cm (1850rpm) front cooling fan (opt.) Optimized Cooling Technology at 21dB Whisper-Quiet Operation
POWER SUPPLY 500W AC power supply w/ PFC AC VOLTAGE: 100 - 240V, 50-60Hz, 7-3.5 Amp +5V: 20 Amp +5V STANDBY: 3 Amp +12V1: 17 Amp +12V2: 17 Amp +12V3: 17 Amp +12V4: 18 Amp -12V: 0.5 Amp +3.3V: 15 Amp CERTIFICATION: 80 PLUS Bronze Certified
POWER SUPPLY SAFETY / EMC: USA - UL listed, FCC Canada - CUL listed Germany - TUV Certified Europe/CE Mark EN 60950/IEC 60950-Compliant CCC Certified
DIMENSION (L"XW"XH"):
WEIGHT: 39.0 lb
WARRANTY INFORMATION: 1 Year
