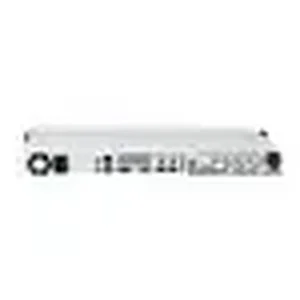

CSE-512F-350B - Supermicro 1U 14.5inch Rackmount 350W 2x3.5 ATX Black Retail

Form Factor
14.5" Mini 1U chassis support for max. motherboard size - 12" x 10" ATX

Processor Support
Supports dual, single Intel / AMD processors

Dimensions
Height
1.7" (43mm)
Width
17.2" (437mm)
Depth
14.5" (369mm)
Gross Weight
14 lbs (6.4kg)
Packaging
22" (W) x 6.3" (H) x 20" (L)
Available Colors
Black

Expansion Slots
1x full-height half-length expansion slot (Riser Card Required)

Drive Bays
Internal Bay
2x 3.5" internal drive bays
SAS or enterprise SATA HDD only recommended

Peripheral Drives
Slim DVD-ROM Drive (optional)

Front Panel
Buttons
Power On/Off button
Reset button
LEDs
Power LED
Hard drive activity LED
2x Network activity LEDs
System Overheat LED System Cooling
Fans
2x 4cm 4-pin PWM Fans Operating Environment (System)
Operating Temperature Range
10 - 35C (50 to 95 F)
Non-Operating Temperature Range
-35 - +60C
Humidity Range
5 - 90% non-condensing
Power Supply
350W AC power supply w/ PFC
AC Voltage
100-240 V, 50-60 Hz, 4.2-1.8 Amp
+5V
18 Amp
+5V standby
3 Amp
+12V
29 Amp
+3.3V
15 Amp

Certification
80 PLUS Gold Certified

Regulatory (Power Supply)
Power Supply Safety / EMC
USA - UL listed, FCC
Canada - CUL listed
China - CCC Mark
Germany - TUV Certified
Europe/CE Mark
EN 60950/IEC 60950-Compliant

Warranty Information
1 Year
