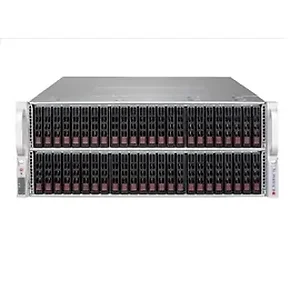

Supermicro CSE-417BE2C-R1K23JBOD Case CSE-417BE2C-R1K23JBOD 4U JBOD 72x2.5 inch Hot-Swap HDD Bay SAS/SATA Black Brown Bo

Form Factor
4U chassis - Storage Enclosure

Available Colors
black

Drive Bays
72 x 2.5" hot-swap HDD bay for server chassis
72 x 2.5" hot-swap HDD bay for server chassis

Backplane
BPN-SAS3-216EL2 (SAS3 12Gb/s dual expander backplane, with LSI SAS3 expander, support 24x 2.5" SATA3/SAS2/SAS3 drives, with 8x mini-SAS3 HD connectors) 3x backplanes (2x Front and 1x Rear)

Buttons
Power On/Off button
System Reset Button
Unit Identification (UID) button

LEDs
2 Network Activity LEDs
Fan Fail/System Over Heat LED
HDD activity LED
Power Status LED

Fans
7 x 8cm hot-swap redundant PWM cooling fans

System Monitoring
Chassis intrusion switch

Operating Environment (System)
Operating Temperature Range : 5^oC - 35^oC (41^oF - 95^oF)
Non-Operating Temperature Range : - 40^oC to 70^oC (- 40^oF to 158^oF)
Operating Relative Humidity Range : 8 percent to 90 percent (non-condensing)
Non-Operating Relative Humidity Range : 5 percent to 95 percent (non-condensing)

Power Supply
AC Input : 1000W Output at 100-127V, 12-15A, 50-60Hz
1200W Output at 200-240V, 7-8.5A, 50-60Hz
DC Output : 1000W: +12V/83A, +5Vsb/4A
1200W: +12V/100A, +5Vsb/4A

Regulatory (Power Supply)
Power Supply Safety / EMC
USA - UL listed
Canada - CUL listed
Germany - TUV Certified
EN 60950/IEC 60950-Compliant
CB Report
CCC Certification

Item Dimension (L inchxW inchxH inch)
N/A

Weight
80.00lb

Warranty Information
1 Year
