Technical Specifications
Form Factor

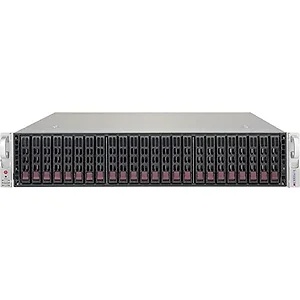

2U Chassis Processor Support
N/A Drive Bays
JBOD Chassis: Up to 24 x 2.5" hot-swap HDD bay for JBOD solution Backplane
BPN-SAS3-216EL2 (SAS3 12Gb/s dual expander backplane, with LSI SAS3 expander, support 24x 2.5" SATA3/SAS2/SAS3 drives, with 8x mini-SAS3 HD connectors) Front Panel
Buttons:
- Power On/Off Button
- System Reset Button
- Unit Identification (UID) Button
LEDs:
- 1 x Network Activity LEDs System Cooling
Fans: 3 x 80x38mm Hotswap Cooling Fan Operating Environment (System)>
Operating System Range: 5 C to 35 C (41 F to 95 F)
Non-Operating Temperature Range: -40 C to 60 C (-40 F to 95 F)
Operating Relative Humidity Range: 8% to 90% (Non-Condensing)
Non-Operating Relative Humidity Range: 5% to 95% (Non-Condensing) Power Supply with Power Distributor
740W (1+1) Redundant high-efficiency power supply with PMBus
AC Input: 100 to 240V 50/60Hz 9-3.5AMP
DC Output: 4 Amp at +5V Standby / 61.7 Amp at +12V
Certification: 80PLUS PLATINUM Certified Regulatory (Power Supply)
Power Supply Safety / EMC:
- USA: UL Listed, FCC
- Canada: CUL Listed
- Germany: TUV Certified
- Europe/CE Mark
- EN 60950/IEC 60950-Compliant Item Dimension (L"xW"xH")
27 x 12 x 35
Weight
69.00 lb
Warranty Information
1 Year
