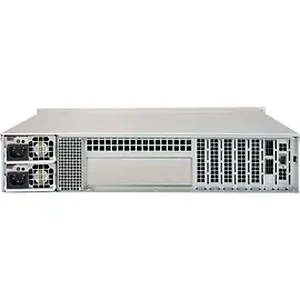

Supermicro CSE-216BE1C-R741JBOD(5YR) SuperChassis 216BE1C-R741JBOD Drive Enclosure - 12Gb/s SAS Host Interface - 2U Rack

Form Factor
2U JBOD storage chassis Available Color
Black Drive Bays
24 x 2.5" hot-swap HDD bay for JBOD solution Qualified SAS Controllers
AOC-SAS3-9300-8E: SAS 12Gb/s PCIe 3.0 8-Port Host Bus Adapter
AOC-SAS3-9380-8E: SAS 12Gb/s PCIe 3.0 8-Port MegaRAID Controller Backplane
24-port 2U SAS3 12Gbps single-expander backplane, support up to 24x 2.5-inch SAS3/SATA3 HDD/SSD Front Panel
Buttons
Power On/Off button
System Reset Button
Unit Identification (UID) button
LEDs
1 Network Activity LEDs Systems Cooling
Fans
3 x 80x38mm hot-swap cooling fan(s) System Monitoring
IPMI Operating Environment (System)
Operating Temperature Range
5^oC - 35^oC (41^oF - 95^oF)
Non-Operating Temperature Range
-40^oC - 70^oC (-40^oF - 158^oF)
Operating Relative Humidity Range
8% - 90% (non-condensing)
Non-Operating Relative Humidity Range
5% - 95% (non-condensing) Power Supply
1U 740W Redundant Platinum Power Supply W/PMbus
Power Efficiency
94%
Total Output Power and Input
740W with Input 100 - 240Vac
AC Input Frequency
50-60Hz
Dimensions (L x W x H)
336 x 76 x 40 mm
Output Type
Backplanes (gold finger)
-12V
Max: NAA
+12V
Max: 61.7A / Min: 0.2A (100Vac - 240Vac)
+5Vsb
Max: 4A / Min: 0A
+12Vsb
Max: NAA
Power Distributor
PDB-PT216-2824
O/P: 12V/100
+5V Max: 30
+3.3V Max: 24
-12V Max: 0.6
Certification
Platinum Certified Regulatory (Power Supply)
Power Supply Safety / EMC
BSMI
CCC
FCC class A
TUV/CB
UL/CUL Item Dimension (L"xW"xH")
35 x 12 x 27

Weight
60 lbs

Warranty Information
5 Years
