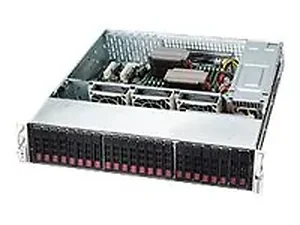

CSE-216BA-R920LPB - Supermicro BLACK 2U SC216B LP CHASSIS WITH

Processor Support
Supports Dual, Single Intel / AMD Processors Expansion Slots
7 x Low Profile Expansion Slots Drive Bays
Hotswap:
24 x 2.5inch SAS/SATA Hotswap Drive Trays SAS or Enterprise SATA HDD Only Recommended Backplane
2U Direct Attached Backplane, Features:
- 3Gb/6Gb Support
SES-2 Enclosure Management Support
SAS/SATA Support
Six SFF 8087 Connectors Front Panel
Buttons:
Power on/off Button
System Reset Button
LEDs:
Power LED
Hard Drive Activity LED
2x Network Activity LEDs
System Overheat LED
Power Fail LED System Cooling
FAN:
3 x 80mm 7200RPM PWM Fans System Monitoring
Chassis Intrusion Switch Operating Environment (System)
Operating Temperature Range:
5C - 35C (41F - 95F)
Non-Operating Temperature Range:
-40 70C (-40 -158F)
Humidity Range:
8 90% Non-Condensing
Non-Operating Humidity Range:
5 95% Non-Condensing Power Supply
920W high-efficiency (95%+) AC-DC Redundant power supplies with PMBus and I2C
AC Input:
100-240 V, 50-60 Hz, 11-4.5 Amp
DC Output:
4 Amp at +5V Standby / 75 Amp at +12V
With Power Distributor:
+5V: 45 Amp
+3.3V: 24 Amp
-12V: 0.6 Amp
Certifications:
80 PLUS PLATINUM Certified Regulatory (Power Supply)
USA - UL listed, FCC
Canada - CUL listed
Germany - TUV Certified
Europe/CE Mark
EN 60950/IEC 60950-Compliant
CCC Certified Form Factor
2U chassis support for max motherboard size - 13" x 13.68", E-ATX and ATX Colors
Black Item Dimension (L"xW"xH")
24.8 x 17.2 x 3.5

Weight
53.00 lb

Warranty Information
1 Year
