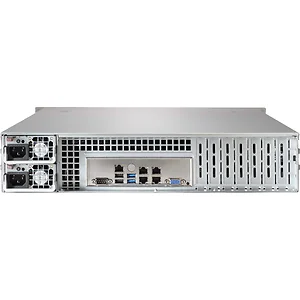

CSE-213AC-R920LPB - Supermicro CS CSE-213AC-R920LPB(3YR) 2U 16x2.5HS SAS SATA 7 Low Profile

Product SKUs
CSE-213AC-R920LPB
SuperChassis 213AC-R920LPB Form Factor
2U chassis supports for maximum motherboard sizes - 13.68" x 13", E-ATX 12" x 13", ATX 12" x 10" motherboards Processor Support
Dual and Single Intel and AMD processors Available Color
Black Expansion Slots
7 low-profile expansion slot(s) Drive Bays
16 x 2.5" hot-swap SAS/SATA drive bay
1 x 5.25" drive bay
Backplane
16-port 2U SAS3 12Gbps direct-attached backplane, support up to 16x 2.5-inch SAS3/SATA3 HDD/SSD Peripheral Drives
Optional 1 x slim DVD-ROM drive bay
Optional 2 x USB 2.0 ports
Optional 1 x COM port tray
Front Panel
Buttons
Power On/Off button
System Reset Button
LEDs
2 Network Activity LEDs
HDD activity LED
Power Status LED
Power Fail LED
System Information LED
Motherboard (for CSE- 213AC-R920LPB)
X10DRL-CT
X10DRL-iT
X10DRL-C
Servers (for CSE- 213AC-R920LPB)
2028R-C1RT4+
2028R-C1R4+
2028R-C1RT
2028R-C1R
Fans
3 x 8cm high-performance PWM fan(s)
System Monitoring
Chassis intrusion switch Operating Environment (System)
Operating Temperature Range
5^oC - 35^oC (41^oF - 95^oF)
Non-Operating Temperature Range
-40^oC - 70^oC (-40^oF - 158^oF)
Operating Relative Humidity Range
8% - 90% (non-condensing)
Non-Operating Relative Humidity Range
5% - 95% (non-condensing)
Power Supply
1U 920W Redundant Platinum Level Power Supply Power Efficiency
94% Total Output Power and Input
920W with Input 100 - 240Vac AC Input Frequency
50-60Hz Dimensions (L x W x H)
336 x 76 x 40 mm Output Type
Backplanes (gold finger) +12V
Max: 75A / Min: 0.5A (100Vac - 240Vac)
