SKU: NETTH34AR9 |  Mfg. Part: CSE-116TQ-R706WB  | UPC: 672042174799  |
 3 Reviews  |     Share Make an offer

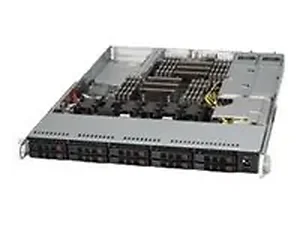

Supermicro CSE-116TQ-R706WB 1U Rackmount Case with Power Supply

Out of Stock
Condition: New

$775.00  $1,046.25
 Free Shipping for this Item

Product Overview

The Supermicro CSE-116TQ-R706WB is a high-performance 1U rackmount case designed to accommodate various server configurations. This chassis supports 10 hot-swap 2.5" drives and is optimized for WIO motherboards. Equipped with a robust 700/750W power supply, this case ensures reliable operation for demanding applications.

Technical Specifications

  • Form Factor: 1U chassis for up to 12" x 13" motherboards.
  • Processor Support: Compatible with dual or single Intel/AMD processors.
  • Expansion Slots: 2 full-height, 1 low-profile expansion slot.
  • Drive Bays: 10x 2.5" hot-swap SAS/SATA internal drive bays (SAS or enterprise SATA HDD recommended).
  • Backplane: BPN-SAS-116TQ for 10x2.5 Hot-swap SAS/SATA HDD.
  • Front Panel: Includes Power On/Off button, UID button, and multiple LEDs for status indication.
  • Fan Configuration: 4x 40x56mm counter-rotation PWM fans; optional additional fans for AOC cooling.
  • System Monitoring: Chassis intrusion switch for enhanced security.
  • Operating Temperature: 5°C - 35°C (41°F - 95°F) with a non-operating range of -40°C - 70°C (-40°F - 158°F).
  • Humidity Requirements: Operating range of 8% - 90% (non-condensing), non-operating range of 5% - 95% (non-condensing).
  • Power Supply: 1U 700/750W Single Output Platinum power supply, 54.5mm width.
  • AC Voltage: 700W: 100 - 140V, 50-60Hz; 750W: 180 - 240V, 60-50Hz.
  • DC Outputs: +5V standby at 3A; +12V at 58A (700W) or 62A (750W).
  • Compliance: UL listed, FCC, CUL listed, TUV Certified, EN 60950/IEC 60950-Compliant.
  • Weight: 35 lbs.
  • Warranty: 1-year warranty included.

Product Details

  • Manufacturer:
  • Model Number:
  • UPC:
  • Condition:
  • Weight:
  • Dimensions:
  • Updated:
  • Added:
  • Supermicro
  • CSE-116TQ-R706WB
  • 672042174799
  • New
  • 20 lbs
  • 25 X 2 X 17
  • Mar 21, 2026
  • Dec 23, 2016
Product Identifiers: Brand: Supermicro • Part #: CSE-116TQ-R706WB • UPC: 672042174799
