CS1922M - Aten Technologies 2-PORT USB3.0 4K DISPLAYPORT KVMP

4 Available
Condition: New

$354.78  $478.95
Need 10+? Request a volume quote
 Free Shipping for this Item

Product Overview

Incorporating the latest Multi-Stream Transport (MST) technology, the CS1922M 2-Port USB 3.0 4K DisplayPort MST KVMP? Switch is the world?s first DisplayPort KVM switch with a built-in MST hub. The CS1922M enables users to adopt two console displays from a single DisplayPort 1.2 video source, providing an extended desktop mode and splitter mode at resolutions up to 4K for multitasking across two displays while reducing bulky cable connections. To meet the ever-increasing demand for high-speed peripheral data transmissions, the CS1922M integrates a USB 3.1 Gen 1 hub to deliver unprecedented data transfer rates up to 5 Gbps ? allowing you to maximize multitasking operations. The unique independent switching feature allows the KVM switch?s focus to be on one computer while its USB peripheral focus is on another computer. This eliminates the need to purchase a separate USB hub or stand-alone peripheral sharer ? such as a print server or splitter. Additionally, the switch allows you to share the audio from each of the connected computers and even allows HD audio transmitted through a DisplayPort source. With a rich feature set, the CS1922M is designed to exceed the requirements such as excellent video quality and ultra-fast data transmission speed for gaming, graphic design, animation, and video-editing applications.

Expert Overview

The Aten Technologies CS1922M is a 2-port USB 3.0 4K DisplayPort KVMP switch designed for IT professionals and businesses requiring efficient control over multiple systems with advanced display capabilities. This device allows a single console (USB keyboard, mouse, and up to two displays) to manage two computers. It integrates a built-in Multi-Stream Transport (MST) hub, enabling dual displays from a single DisplayPort 1.2 video source, supporting extended desktop or splitter modes at resolutions up to 4K. This feature helps reduce cable clutter while facilitating multitasking across two monitors. The CS1922M also includes a 2-port USB 3.1 Gen 1 hub, providing data transfer speeds up to 5 Gbps for connected peripherals. Its independent switching feature allows the KVM, USB hub, and audio focus to be managed separately, which can eliminate the need for additional peripheral sharing devices. This KVM switch is suitable for environments focused on graphic design, animation, or video editing, where high-resolution video and fast data transmission are critical.

Technical Specifications

World?s First DisplayPort KVM Switch with Built-in MST Hub One USB keyboard/mouse and DisplayPort or HDMI monitor control 2 computers and 2 USB peripherals Built-in Multi-Stream Transport (MST) hub allows dual displays (DisplayPort / HDMI) from a single DisplayPort source * Supports MST Mode, Splitter Mode, and Single Port Mode. 2-port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer speeds DisplayPort Dual-Mode (DP++) technology supports HDMI and DVI signals via a DisplayPort-to-HDMI/DVI DP++ adapter ** Firmware upgradeable Hot pluggable ? add or remove computers without powering down the switchRemarkable Audio/Video Experience Superior video quality ? 4K UHD (3840 x 2160 @ 60 Hz) and 4K DCI (4096 x 2160 @ 60 Hz) DisplayPort 1.2 compliant, HDCP compliant Supports HD audio through DisplayPort *** Full bass response for high-quality 2.1 channel surround sound systemsIntelligent Operation Computer selection via front panel pushbuttons, hotkeys, mouse ****, and RS-232 commands Independent switching of KVM, USB hub, and Audio focus Power On Detection ? if a computer is powered off, the CS1922M automatically switches to the next powered-on computer Auto Scan Mode for monitoring all computersVersatile Compatibility Keyboard emulation/bypass feature supports most gaming keyboards Mouse emulation/bypass feature supports most mouse drivers and multifunction mice Multi-platform support ? Windows, Mac and Linux Multilingual keyboard mapping supports English, Japanese, French and German keyboardsProduct Type KVM SwitchboxTechnical Information Number of Computers Supported 2 Number of Local Users Supported 1Video Maximum Video Resolution 4096 x 2160Power Description Input Voltage Range 5 V DCInterfaces/Ports USB Yes HDMI Yes DisplayPort Yes Number of USB Ports 6 Number of HDMI Ports 1 Number of DisplayPorts 3Form Factor DesktopHeight 5.55cm Width 8.8cm Depth 21cmWeight (Approximate) 0.73 kgPackage Contents 2-Port USB 3.0 4K DisplayPort MST KVMP Switch 2 x DisplayPort 1.2 Cables (1.5m/5ft) 2 x USB Cables (USB 3.0-A to USB 3.0-B; 1.8m/6ft) 4 x Audio Cables (1.8m/6ft) 1 x Power Adapter 1 x User InstructionsEnvironmentally Friendly YesEnvironmental Certification WEEE RoHS

Product Details

  • Manufacturer:
  • Model Number:
  • ASIN:
  • UPC:
  • Condition:
  • Weight:
  • Dimensions:
  • Updated:
  • Added:
  • TAA Compliant:
  • Country of Origin:
  • Aten Technologies
  • CS1922M
  • B079RBB1L9
  • 672792007743
  • New
  • 3.98 lbs
  • 7 X 4 X 11
  • Sep 08, 2026
  • Feb 27, 2018
  • Yes
  • TW
Product Identifiers: Brand: Aten Technologies • Part #: CS1922M • UPC: 672792007743 • ASIN: B079RBB1L9 • Category: KVM Switches • TAA Compliant

Frequently Asked Questions

What display configurations does the CS1922M support?

The CS1922M supports MST Mode, Splitter Mode, and Single Port Mode. It allows for dual displays (DisplayPort / HDMI) from a single DisplayPort source, with resolutions up to 4K UHD (3840 x 2160 @ 60 Hz) and 4K DCI (4096 x 2160 @ 60 Hz).

What is included in the package with the CS1922M?

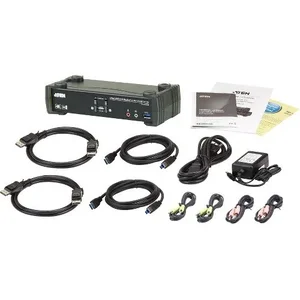

The package includes the 2-Port USB 3.0 4K DisplayPort MST KVMP Switch, two 1.5m DisplayPort 1.2 Cables, two 1.8m USB 3.0-A to USB 3.0-B Cables, four 1.8m Audio Cables, one Power Adapter, and User Instructions.

Can I share USB peripherals independently of the KVM switch?

Yes, the CS1922M features independent switching of KVM, USB hub, and Audio focus. This allows the USB peripheral focus to be on one computer while the KVM switch's focus is on another.

What is the maximum video resolution supported by this KVM switch?

The CS1922M supports a maximum video resolution of 4096 x 2160. It is DisplayPort 1.2 compliant and supports 4K UHD (3840 x 2160 @ 60 Hz) and 4K DCI (4096 x 2160 @ 60 Hz).
