| Main Specifications |

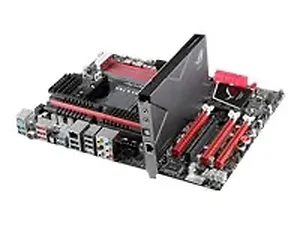

| Product Description | ASUS Crosshair V Formula/ThunderBolt Republic of Gamers - motherboard - ATX - Socket AM3+ - AMD 990FX |
| Product Type | Motherboard - ATX |
| Chipset Type | AMD 990FX / AMD SB950 |
| Processor Socket | 1 x Socket AM3+ |
| Compatible Processors | Sempron, Athlon II, Phenom II |
| Data Bus Transfer Rate | 5.2 GT/s |
| Max Supported Memory | 32 GB |
| RAM Supported | 4 DIMM slots - DDR3 SDRAM , non-ECC, ECC , unbuffered |
| Storage Ports | 6 x SATA-600 (RAID), 1 x SATA-600, 1 x eSATA-600 |
| USB / FireWire Ports | 4 x SuperSpeed USB + 8 x Hi-Speed USB + (2 x SuperSpeed USB + 4 x Hi-Speed USB via headers) |
| Audio | HD Audio (8-channel) |
| LAN | Gigabit Ethernet |
| Manufacturer Warranty | 3 years warranty |
| General | |
| Product Type | Motherboard - ATX |
| Chipset Type | AMD 990FX / AMD SB950 |
| Max Bus Speed | 2600 MHz |
| Data Bus Transfer Rate | 5.2 GT/s |
| Processor Socket | Socket AM3+ |
| Max Processors Qty | 1 |
| Compatible Processors | Sempron, Athlon II, Phenom II |
| Memory | |
| Max Supported Memory | 32 GB |
| Supported RAM Technology | DDR3 SDRAM |
| Supported RAM Speed | 1600 MHz, 1333 MHz, 1066 MHz |
| Supported RAM Integrity Check | Non-ECC, ECC |
| Supported RAM (Registered or Buffered) | Unbuffered |
| RAM Features | Dual channel memory architecture |
| Audio | |
| Type | HD Audio (8-channel) |
| Audio Codec | SupremeFX X-Fi 2 |
| Compliant Standards | High Definition Audio, THX TruStudio Pro, Creative ALchemy, EAX ADVANCED HD 5.0, X-Fi Xtreme Fidelity |
| LAN | |
| Network Interfaces | Gigabit Ethernet |
| Expansion / Connectivity | |
| Expansion Slot(s) | 1 x processor - Socket AM3+ 4 x memory - DIMM 240-pin 3 x PCI Express 2.0 x16 ( CrossFireX: dual x16 mode; triple: x16, x8, x8 mode; SLI: dual x16 mode; triple: x16, x8, x8 mode ) 1 x PCI Express 2.0 x16 ( x4 mode ) 1 x PCI Express 2.0 x1 1 x PCI |
| Storage Interfaces | AMD SB950 : Serial ATA-600 - connector(s): 6 x 7pin Serial ATA - 6 device(s) - RAID 0 / RAID 1 / RAID 10 / RAID 5 ASMedia ASM1061 : Serial ATA-600 - connector(s): 1 x 7pin Serial ATA - 1 device(s) ASMedia ASM1061 : Serial ATA-600 - connector(s): 1 x 7pin external SATA - 1 device(s) |
| Interfaces | 1 x keyboard / mouse - generic - 6 pin mini-DIN (PS/2 style) 1 x network - Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 4 x SuperSpeed USB 3.0 - 9 pin USB Type A 8 x Hi-Speed USB - 4 pin USB Type A 1 x audio - SPDIF output - TOSLINK 1 x audio - line-out - mini-phone stereo 3.5 mm 1 x audio - line-in - mini-phone stereo 3.5 mm 1 x microphone - input - mini-phone 3.5 mm 1 x audio - line-out (side surround) - mini-phone stereo 3.5 mm 1 x audio - line-out (rear) - mini-phone stereo 3.5 mm 1 x audio - line-out (center/subwoofer) - mini-phone 3.5 mm 2 x SuperSpeed USB 3.0 ( internal ) 4 x Hi-Speed USB ( internal ) 1 x audio - SPDIF output ( internal ) |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| Features | |
| BIOS Features | DMI 2.0 support, WfM 2.0 support, Multilingual BIOS, ASUS EZ Flash 2, ASUS MyLogo3, ASUS O.C. Profile, ACPI 2.0a support, SMBIOS 2.5 support, UEFI BIOS |
| Sleep / Wake Up | Wake on LAN (WOL), wake on ring (WOR) |
| Hardware Features | C.P.R. (CPU Parameter Recall), MemOK!, ASUS Q-Design, GameFirst, ROG Connect, ASUS EZ DIY, Q-LED, ASUS Extreme Engine Digi+, ASUS Q-Connector, audio jack detect technology, ASUS CPU Level Up, ASUS COP EX, Voltiminder LED, ASUS Q-Shield, NVIDIA 3-way SLI Technology Support, ASUS Extreme Tweaker, ASUS Fan Xpert, ASUS iROG, Core Unlocker, GPU.DIMM Post, ROG BIOS Print, ATI 3-way CrossFireX technology support, ROG CPU-Z |
| Miscellaneous | |
| Included Accessories | ThunderBolt LAN/Audio Combo Card |
| Cables Included | 6 x Serial ATA cable 1 x 3-way SLI bridge 1 x SLI bridge 1 x CrossFire cable |
| Software Included | Drivers & utilities, Kaspersky Anti-Virus, ROG CPU-Z, Creative Sound Blaster X-Fi 2 utility, DAEMON Tools Pro Standard |
| Compliant Standards | Plug and Play, ACPI 2.0a |
| Width | 12 in |
| Depth | 9.6 in |
| Manufacturer Warranty | |
| Service & Support | 3 years warranty |
| Service & Support Details | Limited warranty - 3 years |
