CP.ZM.000144 - Dji Drone CP.ZM.000144 Ronin-M Retail

Built-In Functions
Three Operation Modes
-Underslung Mode
-Upright Mode
-Briefcase Mode
Built-in, independent IMU module
DJI Specialized Gimbal Drive Motors with Encoders
Bluetooth Module
USB Connection
2.4GHz Receiver
Temperature Sensor
DJI Advanced 32-Bit DSP Processor
D-Bus Receiver Supported MECHANICAL and ELECTRICAL CHARACTERISTICS
Working Current : Static current: 300mA ( at 16V)
Dynamic current: 600mA ( at 16V)
Locked motor current: Max 10A ( at 16V)
Operating Temperature : 5^o F - 120^o F (-15^o C - 50^o C)
Weight : 2.3kg (5.07lb) fully loaded with handlebar PERIPHERAL
Camera Tray Dimensions : Maximum depth at center of mass on camera base plate: 120mm
Maximum height measured from top of camera base plate: 195mm
Maximum width: 160mm
Accessory Power Connections : 12V Regulated P-Tap x 2, USB 500mW x 1, DJI Lightbridge x 1
GCU Input Power : 4S Ronin-M Battery
Connections : 2.4GHz Remote Controller, Bluetooth 4.0, USB 2.0
PC Assistant Software Requirements : Windows XP SP3 Windows 7 Windows 8 (32 or 64 bit)Mac OS X 10.9 or above
Mobile Assistant Software Requirements : Mobile Device: iOS 6.1 or above, Android 4.3 or above WORKING PERFORMANCE
Load Weight (Reference Value) : 8lb (3.6kg)
Angular Vibration Range : +/- 0.02^o
Maximum Controlled Rotation Speed : Pan axis: 90^o/s
Tilt axis: 100^o/s
Roll axis: 30^o/s
Mechanical Endpoint Range : Pan axis: 360^o
Tilt axis: +105^o to -190^o
Roll axis: +/- 110^o
Controlled Rotation Range : Pan axis control: 360^o
Tilt axis control: +105^o /-190^o
Roll axis control: +/- 25^o in the box

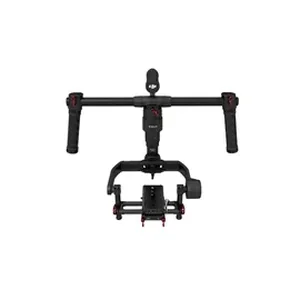

DJI Ronin-M 3-Axis Handheld Gimbal Stabilizer
Ronin-M Transmitter (Controller)
2 x Intelligent Battery for Ronin-M (1580mAh)
Battery Charger
Handle Bar
Tuning Stand
Cable Pack
Micro-USB Cable
Camera Mounting Plate
2 x Camera Screw A (1/4"-20)
2 x Camera Screw B (3/8"-16)
2 x Camera Screw C (1/4"-20)
2 x Camera Screw D (3/8"-16)
Lens Support Screw
Lens Support
2 x Allen Wrench Item Dimension (L inchxW inchxH inch)
10 x 10 x 6

Weight
4.00 lb

Warranty Information
1 Year
