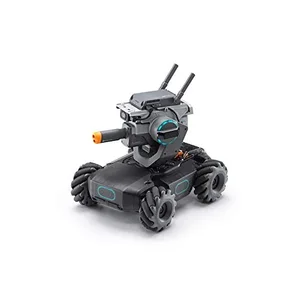

CP.RM.00000103.01 - Dji Toy CP.RM.00000103.01 RoboMaster S1 (NA) Retail

Motor
Motor Type
Brushless Rotational Speed
1000 rpm (Maximum) Maximum Torque
0.25N x m Maximum Output Power
19 W Operating Temperature
14 to 104^oF / -10 to 40^oC Driver
Field Oriented Control (FOC) Control Method
Closed-Loop Speed Control Protections
Overvoltage
Overtemperature
Soft-Start
Short-Circuit
Chip and Sensory Anomaly Gimbal
Controllable Range
-20^o to +35^o (Pitch)
+/- 250^o (Yaw) Mechanical Range
-24^o to +41^o (Pitch)
+/- 270^o (Yaw) Rotational Speed
540^o/s Vibration
+/- 0.02^o (On the platform surface with the blaster idle) Controller
Latency
Connection via Wi-Fi: 80-100 ms
Connection via Router: 100-120 ms
NOTE: Latency times depend on environmental conditions and mobile device Live View Resolution
720p/30 FPS Live View
Resolution: 720p/30 FPS
Max Live View Bitrate: 6 Mb/s Operating Frequencies
2.4 GHz, 5.1 GHz, and 5.8 GHz Operating Mode
Connection via Wi-Fi
Connection via Router Maximum Transmission Distance
Connection via Wi-Fi
FCC: 2.4 GHz 55.1" / 140.0 cm / 5.8 GHz 35.4" / 90.0 cm
CE: 2.4 GHz 55.1" / 140.0 cm / 5.8 GHz 27.6" / 70.0 cm
SRRC: 2.4 GHz 51.2" / 130.0 cm / 5.8 GHz 51.2" / 130.0 cm
MIC: 2.4 GHz 66.9" / 170.0 cm / 5.1 GHz 55.1" / 140.0 cm
Connection via Router FCC: 2.4 GHz 70.9" / 180.0 cm / 5.8 GHz 118.1" / 300.0 cm
CE: 2.4 GHz 70.9" / 180.0 cm / 5.8 GHz 39.4" / 100.0 cm
SRRC: 2.4 GHz 70.9" / 180.0 cm / 5.8 GHz 118.1" / 300.0 cm
MIC: 2.4 GHz 66.9" / 170.0 cm / 5.1 GHz 70.9" / 180.0 cm Transmission Power
(EIRP)
2.400-2.4835 GHz
FCC: less-than or equal to 30 dBm
SRRC: less-than or equal to 20 dBm
MIC: less-than or equal to 20 dBm
5.170-5.25 GHz
FCC: less-than or equal to 30 dBm
SRRC: less-than or equal to 23 dBm
MIC: less-than or equal to 23 dBm
5.725-5.850 GHz
FCC: less-than or equal to 30 dBm
SRRC: less-than or equal to 30 dBm Transmission Protocol
IEEE 802.11 a/b/g/n
