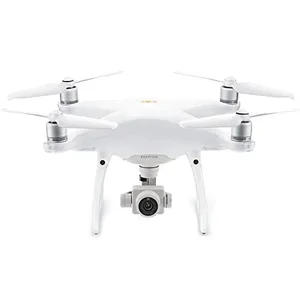

CP.PT.00000234.01 - Dji Drone CP.PT.00000234.01 Phantom 4 Pro+ V2.0 Retail

Aircraft
Max Ascent Speed:
S-mode: 6 m/s
P-mode: 5 m/s
Max Descent Speed:
S-mode: 4 m/s
P-mode: 3 m/s
Max Speed:
S-mode: 45 mph (72 kph)
A-mode: 36 mph (58 kph)
P-mode: 31 mph (50 kph)
Max Tilt Angle:
S-mode: 42^o
A-mode: 35^o
P-mode: 25^o
Max Angular Speed:
S-mode: 250^o/s
A-mode: 150^o/s
Max Service Ceiling Above Sea Level: 19685 feet (6000 m)
Max Wind Speed Resistance: 10 m/s
Max Flight Time: Approx. 30 minutes
Operating Temperature Range: 32^o to 104^oF (0^o to 40^oC)
Satellite Positioning Systems: GPS/GLONASS
Hover Accuracy Range:
Vertical:
+/- 0.1 m (with Vision Positioning)
+/- 0.5 m (with GPS Positioning)
Horizontal:
+/- 0.3 m (with Vision Positioning)
+/- 1.5 m (with GPS Positioning) Vision System
Vision System:
Forward Vision System
Backward Vision System
Downward Vision System
Velocity Range: Less than or equal to 31 mph (50 kph) at 6.6 ft (2 m) above ground
Altitude Range: 0 - 33 feet (0 - 10 m)
Operating Range: 0 - 33 feet (0 - 10 m)
Obstacle Sensory Range: 2 - 98 feet (0.7 - 30 m)
FOV:
Forward: 60^o(Horizontal), +/-27^o(Vertical)
Backward: 60^o(Horizontal), +/-27^o(Vertical)
Downward: 70^o(Front and Rear), 50^o(Left and Right)
Measuring Frequency:
Forward: 10 Hz
Backward: 10 Hz
Downward: 20 Hz
Operating Environment: Surface with clear pattern and adequate lighting (lux>15) Camera
Sensor:
1 CMOS
Effective pixels: 20M
Lens: FOV 84^o 8.8 mm/24 mm (35 mm format equivalent) f/2.8 - f/11 auto focus at 1 m - infinity
ISO Range:
Video:
100 - 3200 (Auto)
100 - 6400 (Manual)
Photo:
100 - 3200 (Auto)
100- 12800 (Manual)
Mechanical Shutter Speed: 8 - 1/2000 s
Electronic Shutter Speed: 8 - 1/8000 s
Image Size:
3:2 Aspect Ratio: 5472 x 3648
4:3 Aspect Ratio: 4864 x 3648
16:9 Aspect Ratio: 5472 x 3078
PIV Image Size:
4096x2160(40962160 24/25/30/48/50p)
3840x2160(38402160 24/25/30/48/50/60p)
2720x1530(27201530 24/25/30/48/50/60p)
1920x1080(19201080 24/25/30/48/50/60/120p)
1280x720(1280720 24/25/30/48/50/60/120p)
Still Photography Modes:
Single Shot
Burst Shooting: 3/5/7/10/14 frames
Auto Exposure Bracketing (AEB): 3/5 bracketed frames at 0.7 EV Bias
Interval: 2/3/5/7/10/15/20/30/60 s
Video Recording Modes:
H.265
C4K:4096x2160 24/25/30p at 100Mbps
4K:3840x2160 24/25/30p at 100Mbps
2.7K:2720x1530 24/25/30p at 65Mbps
2.7K:2720x1530 48/50/60p at 80Mbps
FHD:1920x1080 24/25/30p at 50Mbps
FHD:1920x1080 48/50/60p at 65Mbps
FHD:1920x1080 120p at 100Mbps
HD:1280x720 24/25/30p at 25Mbps
HD:1280x720 48/50/60p at 35Mbps
HD:1280x720 120p at 60Mbps
H.264
C4K:4096x2160 24/25/30/48/50/60p at 100Mbps
4K:3840x2160 24/25/30/48/50/60p at 100Mbps
2.7K:2720x1530 24/25/30p at 80Mbps
2.7K:2720x1530 48/50/60p at 100Mbps
FHD:1920x1080 24/25/30p at 60Mbps
FHD:1920x1080 48/50/60 at 80Mbps
FHD:1920x1080 120p at 100Mbps
HD:1280x720 24/25/30p at 30Mbps
HD:1280x720 48/50/60p at 45Mbps
HD:1280x720 120p at 80Mbps
Max Video Bitrate: 100 Mbps
Supported File Systems: FAT32 (less than or equal to 32 GB) exFAT (>32 GB)
Photo: JPEG, DNG (RAW), JPEG + DNG
Video: MP4/MOV (AVC/H.264 HEVC/H.265) Supported SD Cards:
Micro SD
Max Capacity: 128GB
Write speed greater than or equal to 15MB/s, Class 10 or UHS-1 rating required
Operating Temperature Range: 32^o to 104^oF (0^o to 40^oC) Charger
Voltage: 17.4 V
Rated Power: 100 W App / Live View
Mobile App: DJI GO 4
Live View Working Frequency: 2.4 GHz ISM, 5.8 GHz ISM
Live View Quality: 720P at 30fps
Latency:
Phantom 4 Pro +: 160 - 180 ms
Required Operating Systems:
iOS 9.0 or later
Android 4.4.0 or later Gimbal
Stabilization: 3-axis (pitch, roll, yaw)
Controllable Range: Pitch: -90^o to +30^o
Max Controllable Angular Speed: Pitch: 90^o/s
Angular Vibration Range: +/- 0.02^o Infrared Sensing System
Obstacle Sensory Range: 0.6 - 23 feet (0.2 - 7 m)
FOV: 70^o (Horizontal), +/-10^o (Vertical)
Measuring Frequency: 10 Hz
Operating Environment: Surface with diffuse reflection material, and reflectivity > 8% (such as wall, trees, humans, etc.) Remote Controller
Operating Frequency: 2.400 - 2.483 GHz and 5.725 - 5.825 GHz
Max Transmission Distance:
2.400 - 2.483 GHz (Unobstructed, free of interference)
FCC: 4.3 mi (7 km)
CE: 2.2 mi (3.5 km)
SRRC: 2.5 mi (4 km)
5.725 - 5.825 GHz (Unobstructed, free of interference)
FCC: 4.3 mi (7 km)
CE: 1.2 mi (2 km)
SRRC: 3.1 mi (5 km)
Operating Temperature Range: 32^o to 104^oF (0^o to 40^oC)
Battery: 6000 mAh LiPo 2S
Transmitter Power (EIRP):
2.400 - 2.483 GHz
FCC: 26 dBm
CE: 17 dBm
SRRC: 20 dBm
MIC: 17 dBm
5.725 - 5.825 GHz
FCC: 28 dBm
CE: 14 dBm
SRRC: 20 dBm
MIC: -
Operating Current/Voltage: 1.2 A at 7.4 V
Video Output Port
GL300E: HDMI
GL300F: USB
Mobile Device Holder:
GL300E: Built-in display device (5.5 inch screen, 1920x1080, 1000 cd/m², Android system, 4 GB RAM + 16 GB ROM)
GL300F: Tablets and smart phones Intelligent Flight Battery
Capacity: 5870 mAh
Voltage: 15.2 V
Battery Type: LiPo 4S
Energy: 89.2 Wh
Net Weight: 468 g
Charging Temperature Range: 41^o to 104^oF (5^o to 40^oC)
Max Charging Power: 160 W Item Dimension (L"xW"xH")
13 x 9 x 16

Weight
14 lbs

Warranty Information
1 Year
