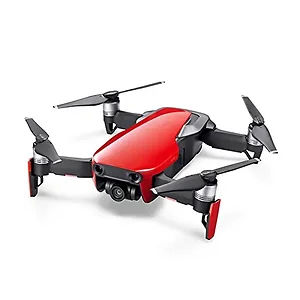

CP.PT.00000147.02 - Dji Drone CP.PT.00000147.01 Mavic Air Flame Red Retail

AIRCRAFT
Takeoff Weight: 430 g
Dimensions:
Folded: 1688349 mm (LWH)
Unfolded: 16818464 mm (LWH)
Diagonal Distance: 213 mm
Max Ascent Speed:
4 m/s (S - mode)
2 m/s (P - mode)
2 m/s (Wi-Fi mode)
Max Descent Speed:
3 m/s (S - mode)
1.5 m/s (P - mode)
1 m/s (Wi-Fi mode)
Max Speed (near sea level, no wind):
68.4 kph (S - mode)
28.8 kph (P - mode)
28.8 kph (Wi-Fi mode)
Max Service Ceiling Above Sea Level: 5000 m
Max Flight Time (no wind): 21 minutes (at a consistent 25 kph)
Max Hovering Time (no wind): 20 minutes
Max Flight Distance (no wind): 10 km
Max Wind Speed Resistance: 29 - 38 kph
Max Tilt Angle:
35^o (S - mode)
15^o (P - mode)
Max Angular Velocity:
250^o/s (S - mode)
250^o/s (P - mode)
Operating Temperature Range: 0^o C - 40^o C
Operating Frequency:
2.400 - 2.4835 GHz
5.725 - 5.850 GHz
Transmission Power (EIRP):
2.400 - 2.4835 GHz
FCC: less than or equal 28 dBm
CE: less than or equal 19 dBm
SRRC: less than or equal 19 dBm
MIC: less than or equal 19 dBm
5.725 - 5.850 GHz
FCC: less than or equal 31 dBm
CE: less than or equal 14 dBm
SRRC: less than or equal 27 dBm
GNSS: GPS + GLONASS
Hovering Accuracy Range
Vertical:
+/- 0.1 m (with Vision Positioning)
+/- 0.5 m (with GPS Positioning)
Horizontal:
+/- 0.1 m (with Vision Positioning)
+/- 1.5 m (with GPS Positioning)
Internal Storage: 8 GB SENSING SYSTEM
Forward:
Precision Measurement Range: 0.5 - 12 m
Detectable Range: 0.5 - 24 m
Effective Sensing Speed: less than or equal 8 m/s
Field of View (FOV): Horizontal 50^o, Vertical +/-19^o
Backward:
Precision Measurement Range: 0.5 - 10 m
Detectable Range: 0.5 - 20 m
Effective Sensing Speed: less than or equal 8 m/s
Field of View (FOV): Horizontal 50^o, Vertical +/-19^o
Downward:
Altitude Range: 0.1 - 8 m
Operating Range: 0.5 - 30 m
Operating Environment
Forward:
Surface with clear pattern and adequate lighting (lux more than 15)
Backward:
Surface with clear pattern and adequate lighting (lux more than 15)
Downward:
Detects clearly patterned surfaces with adequate lighting (lux more than 15) and diffuse reflectivity (more than 20%) REMOTE CONTROLLER
Operating Frequency:
2.400 - 2.4835 GHz
5.725 - 5.850 GHz
Max Transmission Distance (unobstructed, free of interference):
2.400 - 2.4835 GHz:
FCC: 4000 m
CE: 2000 m
SRRC: 2000 m
MIC: 2000 m
5.725 - 5.850 GHz:
FCC: 4000 m
CE: 500 m
SRRC: 2500 m
Operating Temperature Range: 0^oC - 40^oC
Transmission Power (EIRP):
2.400 - 2.4835 GHz:
FCC: less than or equal 26 dBm
CE: less than or equal 18 dBm
SRRC: less than or equal 18 dBm
MIC: less than or equal 18 dBm
5.725 - 5.850 GHz:
FCC: les than or equal 30 dBm
CE: less than or equal 14 dBm
SRRC: less than or equal 26 dBm
Battery: 2970 mAh
Operating Current/Voltage:
1400 mA 3.7 V (Android)
750 mA 3.7 V (iOS)
Supported Mobile Device Size:
Max length: 160 mm
Supported Thickness: 6.5-8.5 mm
Supported USB Port Types: Lightning, Micro USB (Type-B), USB-C CHARGER
Input: 100 - 240 V, 50/60 Hz, 1.4 A
Output:
Main: 13.2 V 3.79 A
USB: 5 V 2 A
Voltage: 13.2 V
Rated Power: 50 W APP
Video Transmission System: Enhanced Wi-Fi
Name: DJI GO 4
Live View Quality:
Remote Controller: 720p at 30fps
Smart Device: 720p at 30fps
DJI Goggles: 720p at 30fps
Latency (depending on environmental conditions and mobile device): 170 - 240 ms
Required Operating System:
iOS v9.0 or later
Android v4.4 or later GIMBAL
Mechanical Range:
Tilt: -100^o to 22^o
Roll: -30^o to 30^o
Pan: -12^o to 12^o
Controllable Range:
Tilt: -90^o to 0^o (default setting)
-90^o to +17^o (extended)
Stabilization: 3-axis (tilt, roll, pan)
Max Control Speed (tilt): 120^o/s
Angular Vibration Range: +/-0.005^o CAMERA
Sensor:
1/2.3 CMOS
Effective Pixels: 12 MP
Lens:
FOV: 85^o
35 mm Format Equivalent: 24 mm
Aperture: f/2.8
Shooting Range: 0.5 m to infinity
ISO Range:
Video:
100 - 1600 (auto)
100 - 1600 (manual)
Photo:
100 - 1600 (auto)
100 - 3200 (manual)
Shutter Speed: Electronic Shutter: 8 - 1/8000s
Still Image Size:
4:3: 4056x3040
16:9: 4056x2280
Still Photography Modes:
Single shot
HDR
Burst shooting: 3/5/7 frames
Auto Exposure Bracketing (AEB): 3/5 bracketed frames at 0.7EV Bias
Interval: 2/3/5/7/10/15/20/30/60 s
Video Resolution:
4K Ultra HD: 3840x2160 24/25/30p
2.7K: 2720x1530 24/25/30/48/50/60p
FHD: 1920x1080 24/25/30/48/50/60/120p
HD: 1280x720 24/25/30/48/50/60/120p
Max Video Bitrate: 100Mbps
Supported File System: FAT32
Photo Format: JPEG/DNG (RAW)
Video Format: MP4/MOV (H.264/MPEG-4 AVC) MOBILE DEVICE CONTROL
Operating Frequency:
2.400 - 2.4835 GHz
5.725 - 5.850 GHz
Max Transmission Distance (unobstructed, free of interference):
Distance: 80 m
Height: 50 m Intelligent Flight Battery
Capacity: 2375 mAh
Voltage: 11.55 V
Max Charging Voltage: 13.2 V
Battery Type: LiPo 3S
Energy: 27.43 Wh
Net Weight: 140 g
Charging Temperature Range: 5^oC 40^oC
Max Charging Power: 60 W Intelligent Flight Battery
Capacity: 2375 mAh
Voltage: 11.55 V
Max Charging Voltage: 13.2 V
Battery Type: LiPo 3S
Energy: 27.43 Wh
Net Weight: 140 g
Charging Temperature Range: 5^oC 40^oC
Max Charging Power: 60 W IN THE BOX
Main Items
Aircraft x 1
Remote Controller x 1
Intelligent Flight Battery x 1
Accessories
Propellers (Pair) x 4
Propeller Guards (Set) x 1
Charger x 1
Power Cable x 1
RC Cable (Lightning connector) x 1
RC Cable (Standard Micro USB connector) x 1
RC Cable (USB Type-C connector) x 1
Communication Cable (USB3.0 Type-C) x 1
USB Adapter x 1
Carrying Case x 1
Spare Parts
Gimbal Protector x 1
RC Cable Slider (Large) x 1
RC Cable Slider (Small) x 2
Spare Control Sticks (Pair) x 1 in the box
DJI Mavic Air
Remote Controller
Intelligent Flight Battery
Charger
Power Cable
3 x Pairs of Props
Set of Prop Guards
RC Cable (Lightning)
RC Cable (Micro-USB)
RC Cable (USB Type-C)
Gimbal Protector
Communication Cable
USB Adapter
RC Cable Slider (Large)
2 x RC Cable Slider (Small)
Carrying Case
Limited 6-Month Warranty on Gimbal Camera
Limited 6-Month Warranty on Vision Positioning System
Limited 6-Month Warranty on Propulsion System (Excluding Propellers)
Limited 12-Month Warranty on Remote Controller
Limited 6-Month / 200-Cycle Warranty on Battery (Whichever Comes First)
Limited 6-Month Warranty on Battery Charger
Item Dimension (L"xW"xH")
8 x 5 x 10

Weight
3.4 lbs

Warranty Information
1 Year
