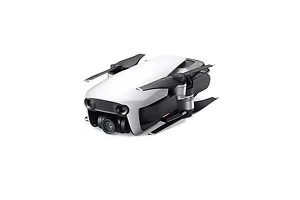

CP.MA.00000306.02 - Dji Drone CP.PT.00000138.02 Mavic Air Arctic White Retail

AIRCRAFT
Takeoff Weight: 430 g
Dimensions:
Folded: 1688349 mm (LWH)
Unfolded: 16818464 mm (LWH)
Diagonal Distance: 213 mm
Max Ascent Speed:
4 m/s (S - mode)
2 m/s (P - mode)
2 m/s (Wi-Fi mode)
Max Descent Speed:
3 m/s (S - mode)
1.5 m/s (P - mode)
1 m/s (Wi-Fi mode)
Max Speed (near sea level, no wind):
68.4 kph (S - mode)
28.8 kph (P - mode)
28.8 kph (Wi-Fi mode)
Max Service Ceiling Above Sea Level: 5000 m
Max Flight Time (no wind): 21 minutes (at a consistent 25 kph)
Max Hovering Time (no wind): 20 minutes
Max Flight Distance (no wind): 10 km
Max Wind Speed Resistance: 29 - 38 kph
Max Tilt Angle:
35^o (S - mode)
15^o (P - mode)
Max Angular Velocity:
250^o/s (S - mode)
250^o/s (P - mode)
Operating Temperature Range: 0^o C - 40^o C
Operating Frequency:
2.400 - 2.4835 GHz
5.725 - 5.850 GHz
Transmission Power (EIRP):
2.400 - 2.4835 GHz
FCC: less than or equal 28 dBm
CE: less than or equal 19 dBm
SRRC: less than or equal 19 dBm
MIC: less than or equal 19 dBm
5.725 - 5.850 GHz
FCC: less than or equal 31 dBm
CE: less than or equal 14 dBm
SRRC: less than or equal 27 dBm
GNSS: GPS + GLONASS
Hovering Accuracy Range
Vertical:
+/- 0.1 m (with Vision Positioning)
+/- 0.5 m (with GPS Positioning)
Horizontal:
+/- 0.1 m (with Vision Positioning)
+/- 1.5 m (with GPS Positioning)
Internal Storage: 8 GB SENSING SYSTEM
Forward:
Precision Measurement Range: 0.5 - 12 m
Detectable Range: 0.5 - 24 m
Effective Sensing Speed: less than or equal 8 m/s
Field of View (FOV): Horizontal 50^o, Vertical +/-19^o
Backward:
Precision Measurement Range: 0.5 - 10 m
Detectable Range: 0.5 - 20 m
Effective Sensing Speed: less than or equal 8 m/s
Field of View (FOV): Horizontal 50^o, Vertical +/-19^o
Downward:
Altitude Range: 0.1 - 8 m
Operating Range: 0.5 - 30 m
Operating Environment
Forward:
Surface with clear pattern and adequate lighting (lux more than 15)
Backward:
Surface with clear pattern and adequate lighting (lux more than 15)
Downward:
Detects clearly patterned surfaces with adequate lighting (lux more than 15) and diffuse reflectivity (more than 20%) REMOTE CONTROLLER
Operating Frequency:
2.400 - 2.4835 GHz
5.725 - 5.850 GHz
Max Transmission Distance (unobstructed, free of interference):
2.400 - 2.4835 GHz:
FCC: 4000 m
CE: 2000 m
SRRC: 2000 m
MIC: 2000 m
5.725 - 5.850 GHz:
FCC: 4000 m
CE: 500 m
SRRC: 2500 m
Operating Temperature Range: 0^oC - 40^oC
Transmission Power (EIRP):
2.400 - 2.4835 GHz:
FCC: less than or equal 26 dBm
CE: less than or equal 18 dBm
SRRC: less than or equal 18 dBm
MIC: less than or equal 18 dBm
5.725 - 5.850 GHz:
FCC: les than or equal 30 dBm
CE: less than or equal 14 dBm
SRRC: less than or equal 26 dBm
Battery: 2970 mAh
Operating Current/Voltage:
1400 mA 3.7 V (Android)
750 mA 3.7 V (iOS)
Supported Mobile Device Size:
Max length: 160 mm
Supported Thickness: 6.5-8.5 mm
Supported USB Port Types: Lightning, Micro USB (Type-B), USB-C CHARGER
Input: 100 - 240 V, 50/60 Hz, 1.4 A
Output:
Main: 13.2 V 3.79 A
USB: 5 V 2 A
Voltage: 13.2 V
Rated Power: 50 W APP
Video Transmission System: Enhanced Wi-Fi
Name: DJI GO 4
Live View Quality:
Remote Controller: 720p at 30fps
Smart Device: 720p at 30fps
DJI Goggles: 720p at 30fps
Latency (depending on environmental conditions and mobile device): 170 - 240 ms
Required Operating System:
iOS v9.0 or later
Android v4.4 or later GIMBAL
Mechanical Range:
Tilt: -100^o to 22^o
Roll: -30^o to 30^o
Pan: -12^o to 12^o
Controllable Range:
Tilt: -90^o to 0^o (default setting)
-90^o to +17^o (extended)
Stabilization: 3-axis (tilt, roll, pan)
Max Control Speed (tilt): 120^o/s
Angular Vibration Range: +/-0.005^o CAMERA
Sensor:
1/2.3 CMOS
Effective Pixels: 12 MP
Lens:
FOV: 85^o
35 mm Format Equivalent: 24 mm
Aperture: f/2.8
Shooting Range: 0.5 m to infinity
ISO Range:
Video:
100 - 1600 (auto)
100 - 1600 (manual)
Photo:
100 - 1600 (auto)
100 - 3200 (manual)
Shutter Speed: Electronic Shutter: 8 - 1/8000s
Still Image Size:
4:3: 4056x3040
16:9: 4056x2280
Still Photography Modes:
Single shot
HDR
Burst shooting: 3/5/7 frames
Auto Exposure Bracketing (AEB): 3/5 bracketed frames at 0.7EV Bias
Interval: 2/3/5/7/10/15/20/30/60 s
Video Resolution:
4K Ultra HD: 3840x2160 24/25/30p
2.7K: 2720x1530 24/25/30/48/50/60p
FHD: 1920x1080 24/25/30/48/50/60/120p
HD: 1280x720 24/25/30/48/50/60/120p
Max Video Bitrate: 100Mbps
Supported File System: FAT32
Photo Format: JPEG/DNG (RAW)
Video Format: MP4/MOV (H.264/MPEG-4 AVC) MOBILE DEVICE CONTROL
Operating Frequency:
2.400 - 2.4835 GHz
5.725 - 5.850 GHz
Max Transmission Distance (unobstructed, free of interference):
Distance: 80 m
Height: 50 m Intelligent Flight Battery
Capacity: 2375 mAh
Voltage: 11.55 V
Max Charging Voltage: 13.2 V
Battery Type: LiPo 3S
Energy: 27.43 Wh
Net Weight: 140 g
Charging Temperature Range: 5^oC 40^oC
Max Charging Power: 60 W SUPPORTED SD CARDS
Supported SD Cards:
microSD
Class 10 or UHS-1 rating required
Recommended microSD Cards
16G
Sandisk Extreme
Kingston 16GB SDHC-I SDCAC/16GB
32G
Sandisk Extreme V30
Sandisk Extreme V30 A1
Sandisk Extreme V30 Pro A1
64G
Sandisk Extreme V30 A1
Sandisk Extreme Pro V30 A1
128G
Sandisk Extreme V30 A1
Sandisk Extreme Plus V30 A1 IN THE BOX
Main Items
Aircraft x 1
Remote Controller x 1
Intelligent Flight Battery x 1
Accessories
Propellers (Pair) x 4
Propeller Guards (Set) x 1
Charger x 1
Power Cable x 1
RC Cable (Lightning connector) x 1
RC Cable (Standard Micro USB connector) x 1
RC Cable (USB Type-C connector) x 1
Communication Cable (USB3.0 Type-C) x 1
USB Adapter x 1
Carrying Case x 1
Spare Parts
Gimbal Protector x 1
RC Cable Slider (Large) x 1
RC Cable Slider (Small) x 2
Spare Control Sticks (Pair) x 1 in the box
DJI Mavic Air
Remote Controller
Intelligent Flight Battery
Charger
Power Cable
3 x Pairs of Props
Set of Prop Guards
RC Cable (Lightning)
RC Cable (Micro-USB)
RC Cable (USB Type-C)
Gimbal Protector
Communication Cable
USB Adapter
RC Cable Slider (Large)
2 x RC Cable Slider (Small)
Carrying Case
Limited 6-Month Warranty on Gimbal Camera
Limited 6-Month Warranty on Vision Positioning System
Limited 6-Month Warranty on Propulsion System (Excluding Propellers)
Limited 12-Month Warranty on Remote Controller
Limited 6-Month / 200-Cycle Warranty on Battery (Whichever Comes First)
Limited 6-Month Warranty on Battery Charger
Item Dimension (L"xW"xH")
8 x 5 x 10

Weight
3.4 lbs

Warranty Information
1 Year
