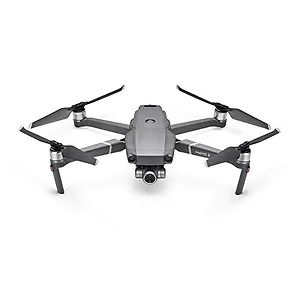

CP.MA.00000051.02 - Dji Drone CP.MA.00000051.02 Mavic 2 Zoom (Excludes Remote Controller and Battery Charger) Retail

Mavic 2 Zoom Camera
Sensor
1/2.3" CMOS
Effective Pixels: 12 million
Lens
FOV: about 83^o (24 mm) about 48^o (48 mm)
35 mm Format Equivalent: 24-48 mm
Aperture: f/2.8 (24 mm)f/3.8 (48 mm)
Shooting Range: 0.5 m to infinity
ISO Range
Video:
100-3200
Photo:
100-1600 (auto)
100-3200 (manual)
Shutter Speed
Electronic Shutter: 8-1/8000s
Still Image Size
4000x3000
Still Photography Modes
Single shot
Burst shooting: 3/5/7 frames
Auto Exposure Bracketing (AEB): 3/5 bracketed frames at 0.7 EV Bias
Interval (JPEG: 2/3/5/7/10/15/20/30/60s RAW:5/7/10/15/20/30/60s)
Video Resolution
4K: 3840x2160 24/25/30p
2.7K: 2688x1512 24/25/30/48/50/60p
FHD: 1920x1080 24/25/30/48/50/60/120p
Max Video Bitrate
100Mbps
Color Mode
D-Cinelike
Supported File System
FAT32 (less than or equal to 32 GB)
exFAT (greater than 32 GB)
Photo Format
JPEG / DNG (RAW)
Video Format
MP4 / MOV (MPEG-4 AVC/H.264, HEVC/H.265) Aircraft
Diagonal Distance
354 mm
Max Ascent Speed
5 m/s (S-mode)
4 m/s (P-mode)
Max Descent Speed
3 m/s (S-mode)
3 m/s (P-mode)
Max Speed (near sea level, no wind)
72 kph (S-mode)
Max Service Ceiling Above Sea Level
6000 m
Max Flight Time (no wind)
31 minutes (at a consistent 25 kph)
Max Hovering Time (no wind)
29 minutes
Max Flight Distance (no wind)
18 km (at a consistent 50 kph)
Max Wind Speed Resistance
29-38 kph
Max Tilt Angle
35^o (S-mode, with remote controller) 25^o (P-mode)
Max Angular Velocity
200^o/s
Operating Temperature Range
-10^oC - 40^oC
Operating Frequency
2.400 - 2.483 GHz
5.725 - 5.850 GHz
Transmission Power (EIRP)
2.400 - 2.483 GHz
FCC: less than or equal to 26 dBm
CE: less than or equal to 20 dBm
SRRC: less than or equal to 20 dBm
MIC: less than or equal to 20 dBm
5.725-5.850 GHz
FCC: less than or equal to 26 dBm
CE: less than or equal to 14 dBm
SRRC: less than or equal to 26 dBm
GNSS
GPS+GLONASS
Hovering Accuracy Range
Vertical:
+/- 0.1 m (when vision positioning is active)
+/- 0.5 m (with GPS positioning)
Horizontal:
+/- 0.3 m (when vision positioning is active)
+/- 1.5 m (with GPS positioning)
Internal Storage
8 GB Sensing System
Sensing System
Omnidirectional Obstacle Sensing1
Forward
Precision Measurement Range: 0.5 - 20 m
Detectable Range: 20 - 40 m
Effective Sensing Speed: less than or equal to 14m/s
FOV: Horizontal: 40^o, Vertical: 70^o
Backward
Precision Measurement Range: 0.5 - 16 m
Detectable Range: 16 - 32 m
Effective Sensing Speed: less than or equal to 12m/s
FOV: Horizontal: 60^o, Vertical: 77^o
Upward
Precision Measurement Range: 0.1 - 8 m
Downward
Precision Measurement Range: 0.5 - 11 m
Detectable Range: 11 - 22 m
Sides
Precision Measurement Range: 0.5 - 10 m
Effective Sensing Speed: less than or equal to 8m/s
FOV: Horizontal: 80^o, Vertical: 65^o
Operating Environment
Forward, Backward and Sides:
Surface with clear pattern and adequate lighting (lux > 15)
Upward:
Detects diffuse reflective surfaces (>20%) (walls, trees, people, etc.)
Downward:
Surface with clear pattern and adequate lighting (lux > 15)
Detects diffuse reflective surfaces (>20%) (walls, trees, people, etc.) APP
Video Transmission System
OcuSync 2.0
Name
DJI GO 4
Live View Quality
Remote Controller:
720p at 30fps / 1080p at 30fps
DJI Goggles:
720p at 30fps / 1080p at 30fps DJI Goggles RE:
720p at 30fps / 1080p at 30fps
Latency (depending on environmental conditions and mobile device)
120 - 130 ms
Max Live View Bitrate
40Mbps
Required Operating System
iOS 10.0 or later Android 5.0 or later Gimbal
Mechanical Range
Tilt: -135-45^o Pan: -100-100^o
Controllable Range
Tilt: -90-30^o Pan: -75-75^o
Stabilization
3-axis (tilt, roll, pan)
Max Control Speed (tilt)
120^o /s
Angular Vibration Range
+/- 0.005^o (Mavic 2 Zoom Intelligent Flight Battery
Capacity
3850 mAh
Voltage
15.4 V
Max Charging Voltage
17.6 V
Battery Type
LiPo 4S
Energy
59.29 Wh
Charging Temperature Range
5^oC - 40^oC
Max Charging Power
80 W Supported SD Cards
Supported SD Cards
Micro SD
Supporting Micro SD with capacity up to 128 GB and R/W speed up to UHS-I Speed Grade 3
Recommended microSD Cards
32G
Sandisk V30
Sandisk Extreme V30 Pro
64G
Sandisk Extreme Pro V30
128G
Sandisk Extreme V30
Sandisk Extreme Pro V30
Kingston Canvas Go
Kingston Canvas React Footnotes
Footnotes
1 Omnidirectional Obstacle Sensing includes left/right, up/down, and forward/backward obstacle sensing. Sensing for left/right directions is only available in ActiveTrack , POI, QuickShot and Tripod mode. Omnidirectional Obstacle Sensing does not fully cover the circumference of a 360-degree arc. And left and right obstacle sensing system only works in specific modes and environments. DJI warranty does not cover any loss caused by crashing when flying left or right, even when ActiveTrack or Tripod mode is activated. Please be aware of your surroundings and App notifications when operating the Mavic 2 to ensure safety.
These specs have been determined through tests conducted with the latest firmware. Firmware updates can enhance performance, so updating to the latest firmware is highly recommended. Item Dimension (L"xW"xH")
6 x 5 x 10

Weight
4.85 lbs

Warranty Information
1 Year
