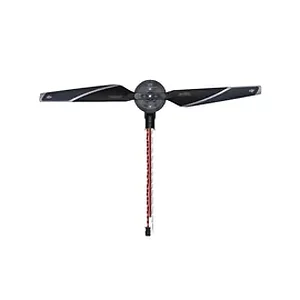

CP.EP.000135 - Dji E5000 Pro Tuned Propulsion System - CCW

Special Order
Ships in 1-2 weeks
Condition: New

$666.56
Need 10+? Request a volume quote
 Free Shipping for this Item

Product Overview

The DJI E5000 Pro Tuned Propulsion System is designed for high-performance applications, offering robust capabilities for your drone needs. With significant thrust and a carefully designed powertrain, this system is ideal for achieving impressive flight performance.

Its specifications make it suitable for mid to high payload drones, ensuring compatibility with various frames and configurations.

Technical Specifications

Specifications
  • Max Thrust: 14 kg/rotor (at 44.4 V, Sea Level)
  • Recommended Battery: 12S LiPo
  • Recommended Takeoff Weight: 4.5 - 7.0 kg/rotor (Sea Level)
  • Compatible Frame Arm Outer Diameter: 30 mm
  • Powertrain Cable Length: Power Cables: 720 mm, Signal Cable Data Cable: 900 mm
  • Powertrain Weight (Single): 1060 g
  • Operating Temperature: -10 to 50 C
Motor
  • Stator Size: 10010 mm
  • KV: 120 rpm/V
  • Weight: 520 g
ESC
  • Max Allowable Voltage: 52.2 V
  • Max Allowable Current (Continuous): 80 A
  • Max Peak Current (< 3 sec): 120 A
  • PWM Input Signal Level: 3.3 V / 5 V
  • Compatible Operating Pulse Width: 1120 to 1920 ms
  • Signal Frequency: 30 Hz to 500 Hz
  • Battery: 12S LiPo

Product Details

  • Manufacturer:
  • Model Number:
  • UPC:
  • Condition:
  • Weight:
  • Dimensions:
  • Updated:
  • Added:
  • DJI
  • CP.EP.000135
  • 190021284951
  • New
  • 6 lbs
  • 0 X 0 X 0
  • May 26, 2026
  • Jun 22, 2017
Product Identifiers: Brand: Dji • Part #: CP.EP.000135 • UPC: 190021284951 • Category: Camera Drone Parts
