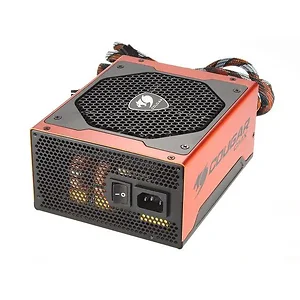

Cougar 1000CMX Power Supply CMX CMX1000V3 1000W ATX 14cm Fan Modular 80 Bronze Retail

Specifications

• Mfr Part Number: COUGAR 1000CMX
• Features:
  • Extremely High Efficiency - 80-PLUS  Bronze certified, up to 88% of efficiency
  • Compatible with Latest PC-Technology - Supports the newest specifications of ATX12V; Created for usage with current and next-generation multi-core CPU platforms
  • Support Multi-GPU Technology - Support PCI Express 2.0 next-generation graphic card with 8(6+2)pin PCI-E connector
  • Ultra-Quiet & Temperature-Controlled Fan - Extremely Low Noise Level, equipped with a large and ultra-quiet 120mm fan
  • Integrated Air Inlet Design - Optimal air-dynamical design, lead to more silent operation
  • High Performance at 40℃ - Non-stop high performance and full rated wattage at 40℃/104℉ ambient temperature
  • Single 12V Rail - Provide sufficient power for overclocking
  • Compliant with Latest ErP Lot 6 2013 - Energy consumption in Standby is < 0.3W, compliant with economy-friendly electrical equipment
  • Supports the Energy Star 5.0 - Compatible with Energy star 5.0 computer system
  • Full Protections with OCP, SCP, OVP, UVP, OPP
• Maximum Power: 1000 W
• Type: ATX12V / EPS12V
• Input:
  • Input Voltage: 115~240 V
  • Input Frequency Range: 50~60 Hz
  • Input Current: 10 - 15A
• Output: +3.3V @ 30A; +5V @ 30A; +12V1~4 @ 24A; +12V5~6 @ 28A; -12V @ 0.8A; +5V SB @ 4A
• PFC: Active PFC
• Efficiency: Up to 89%
• MTBF: > 150,000 Hours
• Fan: 1x 140mm Hydro-Dynamic Bearing Fan
• Connectors: 1x 20+4pin Main Connector, 1x 4pin CPU Connector, 1x 4+4pin CPU Connector, 1x 8pin CPU Connector, 2x 6pin PCI-Express Connectors, 4x 6+2pin PCI-Express Connectors, 10x SATA Connectors, 7x Peripheral Connectors, 1x Floppy Connector
• Approvals: UL, CB, CE, FCC, TUV, RoHS, CCC, ENERAY ATAR 5
• Dimensions (WxLxH): 150.0 x 180.0 x 86.0 mm
• RoHS Compliant
