CM-CG1-CF-01.0 - Maretron Micro Double-Ended Cordset - 1 Meter

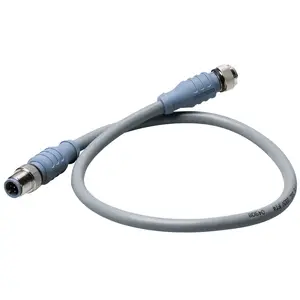

Micro Double-Ended Cordset - 1M

Mechanical

• Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray
• Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray
• Contact Mat/Plating: Brass/Gold
• Coupling Nut Mat/Plating: Brass/Nickel
• Connector Outside Diameter: 0.59"
  Electrical
• Current Rating: 4.0 Amps
• Voltage Rating: 250 V
  Cable
• Outer Jacket Mat/Color: PVC/Gray
• Conductor Insulation Material: HDPE (data pair), SRPVC (power pair)
• Number of Conductors: 4X22 AWG, 22 AWG Drain Wire
• Shielding (3-Levels): FOIL (Overall), FOIL (Power Pair), FOIL (Data Pair)

Environmental

• Protection Class: IEC IP68, NEMA 1,3,4,6P
• Temperature Rating: -40 deg C to 80 deg C to (-40 deg F to 176 deg F)
  Approvals
• (Cable) UL: PLTC 75 deg C Sunlight Resistant E90625,
  AWM 80 deg C 300V
• (Cable) CSA: CMX-OUTDOOR-CMG LL54185 75 deg C,
  AWM I/II A/B 80C 300V FT4
• NMEA: NMEA 2000 Approved

The Maretron Micro Double-Ended Cordset is a 1-meter cable designed for reliable data and power transmission in demanding environments. This cordset features a thermoplastic PUR contact carrier and molded body, brass contacts with gold plating, and brass coupling nuts with nickel plating, ensuring durable connections. The cable itself is constructed with a PVC outer jacket, HDPE insulation for data pairs, and SRPVC for power pairs, incorporating 4x22 AWG conductors plus a 22 AWG drain wire. Triple-level foil shielding (overall, power pair, and data pair) helps maintain signal integrity. With a current rating of 4.0 Amps and a voltage rating of 250 V, it supports essential electrical requirements. The cordset, identified by part number CM-CG1-CF-01.0, is suitable for applications requiring NMEA 2000 approval and robust environmental protection, including IEC IP68 and NEMA 1, 3, 4, 6P ratings, with an operating temperature range of -40 deg C to 80 deg C. It addresses the need for a resilient, industry-standard compliant cabling solution in marine and industrial IT setups.
