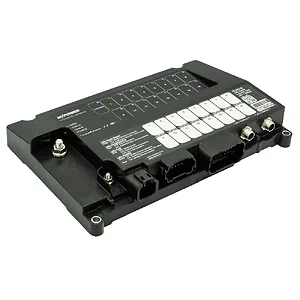

Maretron 16-Channel DC Load Controller with NMEA 2K
The Maretron 16-Channel DC Load Controller is designed for managing larger electrical systems with ease. Featuring sixteen channels, this robust module allows for four breakers to handle up to 25 amps and twelve breakers to handle up to 12 amps, with an overall capacity of 125 amps. Efficiently monitor and control various DC loads such as lights, pumps, and electronics from one centralized module.
Integrated with an NMEA 2000 interface, the module ensures compatibility with marine systems, while its eight inputs can be used for hard-wired switches, monitoring tank levels, or receiving input from other data sources. Additionally, it includes two H-Bridge circuits for reversing polarity tasks, ideal for engine hatches and trim tabs.
With individual breaker monitoring, users can easily detect overcurrent or undercurrent situations, safeguarding electrical integrity while enhancing operational safety.
The Maretron 16-Channel DC Load Controller, part number CLMD16, is a robust module designed for centralized management of direct current (DC) electrical systems in marine environments. This unit is suitable for IT professionals and system integrators responsible for configuring and maintaining marine electronics. It provides sixteen dimmable electronic circuit breakers (ECBs) for on/off control, with four channels supporting up to 25 amps and twelve channels supporting up to 12 amps, for an overall capacity of 125 amps. The integrated NMEA 2000 interface ensures compatibility with existing marine networks. Users can monitor and control various DC loads such as lighting, pumps, and other electronics. The module includes individual breaker current monitoring for detecting overcurrent or undercurrent conditions, enhancing system integrity and operational safety. Additionally, it offers eight digital inputs, two resistive analog inputs, one current loop input, and two H-Bridge circuits for polarity reversal tasks, addressing diverse control and monitoring requirements.
The Maretron 16-Channel DC Load Controller has an overall capacity of 125 amps. It features four breakers that can handle up to 25 amps each and twelve breakers that can handle up to 12 amps each.
This controller integrates with marine systems via an NMEA 2000 interface. It is opto-isolated from NMEA 2000 to prevent ground loops.
The device includes eight digital input channels for signal sensing, two resistive analog input channels, and one current loop input channel (4-20mA). These can be used for hard-wired switches, monitoring tank levels, or other data sources.
Yes, it includes individual breaker monitoring to detect overcurrent or undercurrent situations. It also provides protection against power and ground short circuits, and features automatic shutdown for overcurrent and thermal faults.
CLMD16 - Teledyne Flir Maritime Us, Inc Maretron 16-Ch DC Load Controller w/ NMEA
