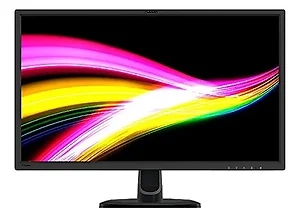

Planar 998-0294-00 CLARITY MATRIX G3 LX46U, 46 IN 1920X1080, 500 NIT LCD VIDEO WALL SYATEM, 1 LCD MODULE, POWER SUPPLY,

Product Name
PLL2470W Planar Part Number
997-8058-00 Viewable Size
23.8" diagonal (20.75" horizontal x 11.67" vertical) Aspect Ratio
16:9 Contrast Ratio (typ)
1000:1 Viewing Angle (typ)
178^o Horizontal and 178^o Vertical (Specified at CR>10:1) Response Time (typ)
14 ms Brightness (Typical)
250 cd/m² Display Type
Edge-Lit LED LCD Active Matrix Flat Panel Display (TFT) Display Resolution
1920 x 1080, full HD Tilt Range
-5^o to +20^o Palette
16.7 million colors Pixel Pitch
0.3114 mm Refresh Rate
55-76 Hz (60 Hz recommended) Panel Depth
1.90" (48.2 mm) Video Inputs
Digital (DVI-D w/HDCP), Analog (VGA) HDCP
Yes External Connections
1 - DVI 24-pin connector 1 - Analog VGA D-sub 15-pin video display Compatibility
PC and Mac (adapter may be required for Mac) Power Supply
Internal
