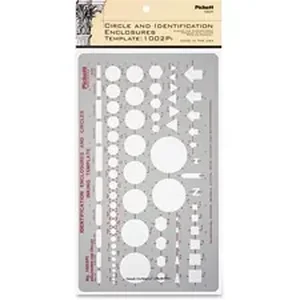

The Chartpak Circle/Identification Template (CHA 1002PI) is a specialized drawing tool designed for technical professionals requiring precise geometric shapes. This template provides apertures for circles, squares, rectangles, hexagons, diamonds, and directional arrows, making it suitable for drafting, engineering, or schematic work. It is engineered for compatibility with both technical pens and pencils, featuring precision-engraved apertures to facilitate single-stroke accuracy. The template incorporates an ink riser to prevent smudging during inking and allows for easy repositioning on a drawing surface. Its soft gray color and matte finish are intended to minimize glare, enhancing visibility during use. This tool addresses the need for consistent and accurate rendering of common shapes in technical drawings, supporting efficiency in design and documentation tasks.
Enclosure template offers circles, squares, rectangles, hexagons, diamonds and directional arrows and is designed for use with technical pens or pencils. Precision-engraved apertures ensure single-stroke accuracy. Soft gray color with matte finish reduces glare. Template has ink riser to give clean, smudge-free inking and easy pickup and repositioning.
The Chartpak Circle/Identification Template includes patterns for circles, squares, hexagons, rectangles, diamonds, and directional arrows.
This template is designed for use with technical pens or pencils, ensuring versatility for various drafting needs.
The template measures 5.9 inches in height and 10 inches in width. It features a soft gray color with a matte finish to reduce glare.
Yes, the template incorporates an ink riser, which is designed to give clean, smudge-free inking and facilitate easy pickup and repositioning.
CHA 1002PI - Chartpak/pickett Chartpak Circle/Identification Template - Circle, Square, Hexagon, Rectangle, Diamond, Dir
