Out of Stock
Condition: New
Allows you to select and switch between any of the 8 HDMI source devices to display on any of the 8 HDMI displays simultaneously
- Supports HDMI 2.0, HDCP 2.2 , and is backward compatible with earlier versions
- Supports 4Kx2K at 60Hz YUV 4:4:4, HDR, and 1080p 3D signals
- Transmits 4Kx2K at 60Hz YUV 4:4:4 signal up to 16.4 feet (5m) via HDMI port
- 8 S/PDIF ports provide de-embedded HDMI audio output
- Controllable via front panel button, IR, RS232, TCP/IP or web-based GUI
- LCD screen shows real-time I/O connection status
- Convenient firmware upgrade through Micro USB port
- Metal housing
- Provides powerful EDID management:
Built-in EDID
RS232 commands
Web-based GUI
- Product:
Color: Black
Connectors:
-8x 19-pin HDMI, Type A, Female, Input
-8x 19-pin HDMI, Type A, Female, Output
-8x S/PDIF, de-embedded HDMI audio, Output
-1x 8P8C RJ-45, TCP/IP, Control
-1x 3.5mm jack, IR receiver, Control
-1x 3-pin terminal block, RS-232, Control
-1x 4-pin EDID DIP switch, Control
-1x 5-pin Micro USB, Firmware update
-1x Power jack
- Power adapter:
Input: 100-240VAC, 50/60 Hz
Output: DC 24V/2.71A
- Environmental conditions:
Operating temperature: 32 to 104 degrees F
Storage temperature: -4 to 140 degrees F
Relative humidity: 20 to 90% RH (non-condensing)
- Certifications/Standards:
FCC, CE, RoHS
Item Dimension(L inchxW inchxH inch)
13 x 16 x 4
Weight
7.94lb
Warranty Information
3 years

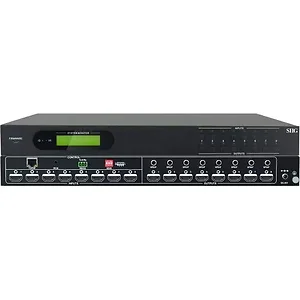

Siig CEH23X11S1 AC CE-H23X11-S1 HDMI2.0 8x8 Matrix Switcher source devices Brown Box
