SKU: CTGY0K9SCQ |  Mfg. Part: CEH23M11S1  | UPC: 662774041667  |
 1 Reviews  |     Share

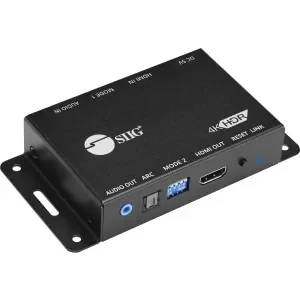

CEH23M11S1 - Siig HDMI 2.0 AUDIO EXTRACTOR/EMBEDDER. ALLOW TO MAKE DIFFERENT AUDIO CAPATITY FROM H

Special Order
Ships in 1-2 weeks
Condition: New

$84.83  $114.52
Need 10+? Request a volume quote
 Free Shipping for this Item

Product Overview

General InformationSeparates the high quality analog stereo audio and digital S/PDIF (Toslink) audio from the incoming HDMI signal or embeds external stereo analog audio or digital S/PDIF (Toslink) audio to the outgoing HDMI signal without losing any active audio channels Extracts high quality Stereo Analog audio and Digital Toslink S/PDIF audio from the incoming HDMI signal without losing any active audio channels Embeds external Stereo Analog audio or Digital S/PDIF (Toslink) audio to the outgoing HDMI signal Supports HDMI Input and Output up to 4K @60Hz (YUV 4: 4: 4 8-bit), HDR 4K @60Hz (YUV 4: 2: 0 10-bit) Compatible with HDMI 2.0a and HDCP 2.2 Video bandwidth up to 18Gbps Supports CEC bypass and Audio Return Channel (ARC) audio extraction via Toslink Technical InformationFunctions: Audio De-embeddingFunctions: Audio EmbeddingFunctions: EDID RecorderMaximum Resolution: 3840 x 2160Interfaces/PortsHDMI: YesAudio Line In: YesAudio Line Out: YesPhysical CharacteristicsForm Factor: Wall MountableHeight: 0.9"Width: 2.6"Depth: 4"Weight (Approximate): 7.84 ozMiscellaneousPackage Contents: HDMI 2.0 Audio Extractor/Embedder Power Adapter 5V/2A Screw Kit Quick Start Guide Environmentally Friendly: YesEnvironmental Certification: RoHSCountry of Origin: TaiwanTAA Compliant: YesWarrantyLimited Warranty: 3 Year

Technical Specifications

Compliant with HDMI 2.0a and HDCP 2.2 specification
Support CEC pass through
Supports 4Kx2K at 60Hz YUV 4:4:4 8bit
Supports HDR 4K at 60Hz YUV 4:2:0 10bit
Video bandwidth up to 18Gbps (600MHz per channel)
Resolution:
480p / 720p / 1080i / 1080p / 4Kx2K at 60Hz
Supports audio embedded via stereo and S/PDIF (Toslink)
Supports ARC audio extraction via S/PDIF (Toslink)
Supported audio formats:
- HDMI: PCM 2/5.1/7.1, Dolby 5.1/7.1, DTS 5.1/7.1
- Optical (Toslink): PCM 2, Dolby 5.1
ESD protection:
+/- 15kV Air and +/- 8kV Contact
Metal housing wall mount design
Product
- Color: Black
- Housing material: Metal
- Connector:
1x 19-Pin HDMI, Type A, Female, Input
1x 19-Pin HDMI, Type A, Female, Output
1x 5-Pin Micro USB, Power Input (included power adapter)
1x 3.5mm, Stereo audio, Input
1x S/PDIF, Toslink audio, Input
1x 4-Pin Mode-1 Switch
1x 3.5mm, Stereo audio, Output
1x S/PDIF, Toslink audio, Output
1x 4-Pin Mode-2 Switch
Power adapter:
- Input: 100-240VAC, 50/60 Hz
- Output: DC 5V/1A
- UL Listed: E135856/Level:VI
Environmental conditions:
- Operating temperature: 32 to 104 degrees F
- Storage temperature: -4 to 140 degrees F
Relative humidity:
20 to 90% RH (non-condensing)
Certifications/Standards: FCC, CE, RoHS
TAA compliant
Item Dimension(L inchxW inchxH inch)
6 x 8 x 3
Weight
2.00lb
Warranty Information
3 years

Product Details

  • Manufacturer:
  • Model Number:
  • ASIN:
  • UPC:
  • Condition:
  • Weight:
  • Dimensions:
  • Updated:
  • Added:
  • Country of Origin:
  • Siig
  • CEH23M11S1
  • B07HNM2F1Q
  • 662774041667
  • New
  • 2 lbs
  • 5 X 5 X 8
  • Apr 25, 2026
  • Aug 20, 2022
  • TW
Product Identifiers: Brand: Siig • Part #: CEH23M11S1 • UPC: 662774041667 • ASIN: B07HNM2F1Q • Category: Audio Cables & Interconnects
