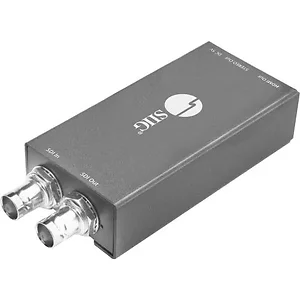

Product Overview
General InformationConverts single 3G/HD/SD source signal into one HDMI and Local 3G/HD/SD-SDI outputs simultaneously Converts one 3G/HD/SD-SDI signal to high quality HDMI video out and analogy stereo audio output Supports a wide range of video and audio formats up to 1080p resolution with multi-channel digital audio Supports SDI data rates from 270Mbps up to 2.97Gbps and HDMI output up to 6.75Gbps Metal housing provides better RF shielding and heat dissipation to safeguard longer operational lifespan Wall-mountable metal housing allows easy integration into various installation environments Plug & Play - No driver or software installation required Technical InformationFunctions: Audio ExtractionFunctions: Signal ConversionVideo System: NTSCVideo System: PALMaximum Resolution: 1920 x 1080Interfaces/PortsUSB: YesHDMI: YesAudio Line Out: YesSDI: YesNumber of SDI Inputs: 1Number of SDI Outputs: 1Physical CharacteristicsForm Factor: Wall MountableHeight: 1.7"Width: 0.9"Depth: 3.6"Weight (Approximate): 3.04 ozMiscellaneousPackage Contents: 3G/HD/SD-SDI to HDMI with Audio Extractor Mini Converter Power Adapter 5V/2A Quick Start Guid Environmentally Friendly: YesEnvironmental Certification: RoHSCountry of Origin: TaiwanTAA Compliant: YesWarrantyLimited Warranty: 3 Year
Technical Specifications
Compliant with HDMI 1.3 specification and 3G/HD/SD-SDI standard
Supports auto 3G/HD/SD-SDI detection
Supports stereo audio output
Supports HDMI Deep color
Video bandwidth:
- SDI: Up to 2.97Gbps
- HDMI: Up to 6.75Gbps
Supports video resolution:
- 3G: 1080p 50 / 59.94 / 60 (4:2:2)
- HDMI: up to 1080p 60Hz
- HD:
720p at 50/59.94/60Hz
1080i at 50/59.94/60Hz
1080p at 23.98/24/25/29.97/30Hz
- SD:
NTSC at 59.94Hz
PAL at 50Hz
Cable equalization:
- 3G-SDI: up to 90m (300ft)
- HD-SDI: up to 150m (500ft)
- SD-SDI: up to 300m (1000ft)
- HDMI: up to 10m (33ft)
ESD protection:
+/-15kV Air and +/-8kV Contact
Metal housing with wall mount design
Product
- Color: Iron gray
- Housing material: Metal
- Connector:
1x BNC (SDI), Female, Input
1x 19-Pin HDMI, Type A, Female, Output
1x BNC (SDI), Female, Output 1x 5-Pin Micro USB, Power in
1x 3.5mm, Stereo Audio, output
Power adapter:
- Input: 100-240VAC, 50/60 Hz
- Output: DC 5V/1A
- UL listed: E135856/Level:VI
Environmental conditions:
- Operating temperature: 32 to 104 degrees F
- Storage temperature: -4 to 140 degrees F
- Relative humidity: 20 to 90% RH (non-condensing)
Certifications/Standards:
FCC, CE, RoHS
TAA compliant
Item Dimension (L inchxW inchxH inch)
6 x 8 x 3
Weight
2.00lb
Warranty Information
3 years
