Technical Specifications
Compliant with HDMI 2.0a, HDCP 2.2/1.4
Supports resolution:
480p/720p/1080i/1080p/ HDR 4K2K at 60 (4:2:0 10bits) / 4K2K at 60 (4:4:4 8bits)
Video bandwidth:
Up to 18Gbps (single-line 600MHz)
Audio Support:
DTS-HD Master Audio, Dolby TrueHD Dolby Digital, DTS, DVD-Audio, LPCM
HDMI cable distance:
Up to 10 meters for 4K at 60Hz (YUV 4:4:4 8bits) (Input 5m + Output 5m)
LED indicators for power and video signal status
EDID management:
Copy EDID: The display connected to Output 1 has priority over the display connected to Output 2. Recommended to connect the monitor with the highest resolution to Output 1 for the best performance/compatibility
Auto EDID: Default 3840x2160 at 60Hz
Mixed EDID: Uses the lowest resolution/audio capabilities of the connected displays
Note: HDR source signal only supports Copy EDID and Mixed EDID settings

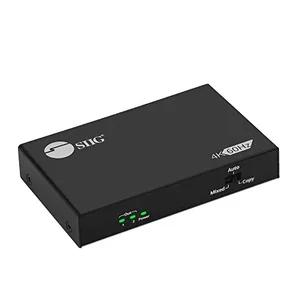

Product:
Color: Black
Housing: Metal
Connectors:
1x 19-Pin, HDMI, Type A, Female, Input
2x 19-pin, HDMI, Type A, Female, Output
1x 5-pin Micro USB, Female, Power / Firmware update
1x 3-pin DIP switch, EDID control
Power Adapter:
Input: 100-240VAC, 50/60 Hz
Output: 5V/1A
UL: E504312 level: VI
Environmental conditions:
Operating temperature: 23 to 104 degrees F
Storage temperature: -4 to 140 degrees F
Relative humidity: 5% to 90% RH (non-condensing)
Certifications/Standards:
FCC, CE, RoHS Item Dimension (L"x W"x H")
4 x 1 x 3
Weight
1.00 LB
Warranty Information
2 Years
