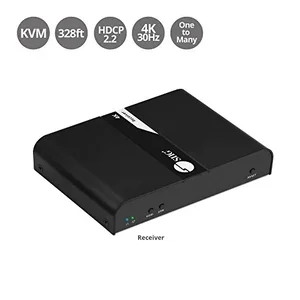

CE-H25L11-S1 - Siig TRUE 4K PERFORMANCE RECEIVES HDMI AND USB SIGNALS UP TO 328FT (100M) OVER CAT6 C

Compliant with HDMI 1.4 and HDCP 2.2
Maximum transfer rate:
10.2Gbps KVM function:
Connect a keyboard and mouse to a Receiver to control your computer at a remote location
Network topology:
One-to-one: Direct connection or through Gigabit Ethernet switch (not included)
One-to-many:
Requires HDMI 4K30Hz KVM over Cat6 Extender Kit, part number CE-H25H11-S1, sold separately
Requires dedicated Gigabit Ethernet switch, not included
Display output: Mirror
Transmission Distance:
Cat6/6A/7: up to 100m
Input/Output cable length supported:
is equal to 5m(AWG24)
Supports Audio formats:
PCM, LPCM, Dolby, DTS
Resolution:
800x600 at 60Hz / 1024x768 at 60Hz / 1280x720 at 60Hz / 1280x800 at 60Hz / 1280x1024 at 60Hz / 1440x900 at 60Hz / 1680x1050 at 60Hz / 1920x1080 at 60Hz / 2560x1080 at 60Hz / 3840x2160 at 30Hz / 4096x2160 at 30Hz
Housing material:
Iron alloy + crystal panel
Product:
Connectors:
1x 19-pin HDMI, Type A, Female, Output
2x 4-pin USB 2.0 Type-A Female, connect to Keyboard/Mouse
1x 8-pin, RJ45, Input
1x EDID button, Sync TX loop-out and RX output resolution
1x USB button, to switch USB control
1x Reset button
1x Power jack
Power adapter:
Input: 100-240V / 50-60Hz
Output: DC 5V/1A
UL listed: E335801 / Level: VI
Environmental conditions:
Operating temperature: 32 to 104 degrees
Storage temperature: 14 to 158 degrees
Relative humidity: 0 to 90% RH (non-condensing) Certifications/Standards:
FCC, CE, RoHS
Item Dimension (L"x W"x H")
6 x 1 x 4
Weight
1.00 LB
Warranty Information
2 years
