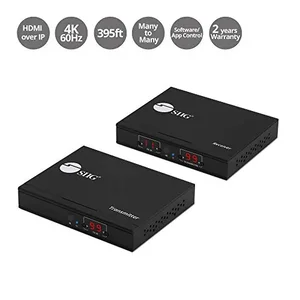

CE-H25A11-S1 - Siig TECHNICAL SPECS HDMI OVER IP EXTENDER/MATRIX TRUE 4K PERFORMANCE EXTENDS 4K60HZ

Transmission Protocol:
HDbitT, V1.3x-c (H.264 compression)
Compliant with HDMI 2.0 and HDCP 2.2
HDMI resolution:
Up to 4Kx2K at 60Hz
Maximum transfer rate:
18Gbps
HDMI cable length:
Up to 5m, 26AWG (Input and Output)
Supports 2-Ch PCM stereo audio
Connection modes:
One-to-One: Extender, 1 TX to 1 RX
One-to-Many: IP Splitter using IGMP Gigabit Switch
Many-to-Many: IP Matrix using IGMP Gigabit Switch
Transmission distance:
One-to-One: 120 meters
One-to-Many / Many-to-Many: 100 meters
Supports full frequency IR signal from 20KHz to 60KHz
Latency:
< 200ms
Protection Level:
A Contact discharge level 3
B Air discharge level 3
C Standard: IEC61000-4-2
Housing material:
Metal Housing
Housing color:
Black
Product:
Transmitting unit (TX):
Connectors:
1x 19-pin HDMI, Type-A, Female, Input
1x 3.5mm jack, IR Blaster
1x 8-pin RJ45, HDbitT, Output
1x Power jack
1x Switch button (for ID)
1x Reset button
Receiving unit (RX):
Connectors:
1x 19-pin HDMI, Type-A, Female, Output
1x 3.5mm jack, IR Receiver
1x 8-pin RJ45, HDbitT, Input
1x Power jack
2x Switch button (For RX ID and TX ID connected)
1x Reset button
Power adapter:
Input: 100-240V / 50-60Hz
Output: DC 5V/3A
UL Listed: E335801 / Class VI
Environmental conditions:
Operating temperature: 32 to 122 degrees F
Storage temperature: 14 to 158 degrees F
Relative humidity: 0 to 90% RH (non-condensing)
Certifications/Standards:
FCC, CE, RoHS
Item Dimension (L"x W"x H")
6 x 2 x 5
Weight
1.00 LB
Warranty Information
2 years
