SKU: UL6E034FKT |  Mfg. Part: CE-H25311-S1  | UPC: 662774042886  |
 3 Reviews  |     Share

CE-H25311-S1 - Siig TECHNICAL SPECS HDMI OVER IP MATRIX/VIDEO WALL RECEIVER TRUE 4K PERFORMANCE HDMI

Special Order
Ships in 1-2 weeks
Condition: New

$286.68  $387.02
Need 10+? Request a volume quote
 Free Shipping for this Item

Product Overview

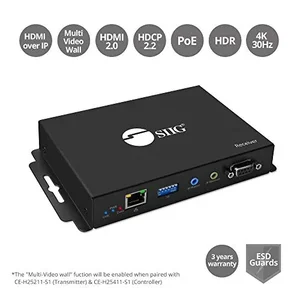

The SIIG HDMI 2.0 Video Wall Over IP Multicast System Receiver is designed for high-performance video distribution over IP networks. It supports stunning 4K video resolutions and advanced audio features for immersive multimedia experiences. This receiver allows seamless integration into video walls and multi-display setups, providing a reliable solution for commercial and professional environments.

Technical Specifications

  • Chipset: Aspeed
  • Compliance: HDMI 2.0a and HDCP 2.2
  • Input resolution: Up to 4Kx2K at 60Hz (YUV 4:4:4, 8bits)
  • Output resolution: Up to 4Kx2K at 30Hz
  • Resolution support: 480p, 720p, 1080i, 1080p, 4K at 30Hz
  • Distance: 396ft (CAT6), 4Kx2K at 30Hz
  • Note: Transmission distance varies depending on cable quality (100% copper recommended)
  • HDMI cable length: Up to 5m (Input and Output)
  • Audio support: Surround sound (up to 7.1ch) or stereo digital audio
  • Latency: 23ms for 1080p at 60Hz
  • IR frequency: 20KHz to 60KHz
  • ESD protection: Human body model- +/-15kV (air-gap) and +/-8kV (contact)
  • Housing material: Metal
  • Housing color: Black
  • Connectors: 1x 19-pin HDMI Type-A (Female, Spare input), 1x 19-pin HDMI Type-A (Female, Output), 1x 9-pin RS-232 (Female), 1x 3.5mm jack (audio out), 1x 3.5mm jack (IR Blaster), 1x 3.5mm jack (IR Receiver), 1x 8-pin RJ45 (Input), 2x 4-pin USB 2.0 (Type A, Female), 1x Power jack, 1x 6-pin DIP Switch (video channel selection), 1x DIP Switch (debug/bypass mode)
  • Power adapter: Input: 100-240V, 50-60Hz; Output: DC 5V/2A (UL Listed: E135856/Class VI)
  • Environmental conditions: Operating temperature: 32 to 104 degrees F; Storage temperature: -4 to 140 degrees F; Relative humidity: 20% to 90% RH (non-condensing)
  • TAA Compliant
  • Certifications/Standards: FCC, CE, RoHS
  • Item dimensions: 8 x 2 x 4 inches
  • Weight: 1.07 lbs
  • Warranty: 3 years

Product Details

  • Manufacturer:
  • Model Number:
  • ASIN:
  • UPC:
  • Condition:
  • Weight:
  • Dimensions:
  • Updated:
  • Added:
  • TAA Compliant:
  • Country of Origin:
  • Siig
  • CE-H25311-S1
  • B07TCRCMNW
  • 662774042886
  • New
  • 1.67 lbs
  • 8 X 3 X 6
  • May 31, 2026
  • Aug 23, 2019
  • Yes
  • TW
Product Identifiers: Brand: Siig • Part #: CE-H25311-S1 • UPC: 662774042886 • ASIN: B07TCRCMNW • Category: Video Cables & Interconnects • TAA Compliant
