Technical Specifications
HDMI compliance: HDMI 2.0a
HDCP compliance: HDCP 2.2
Video bandwidth: 18Gbps
Resolution support: HDR 4Kx2K at 60Hz (4:2:0 10-bit) / 4Kx2K at 60Hz (YUV 4:4:4 8-bit)
EDID managment: Embedded / Learning
Supports LPCM 7.1 audio, Dolby TrueHD, Dolby Digital
CEC pass-through
Color: Black
Housing material: Metal
ESD protection: Human body model 15kV (air-gap) 8kV (contact)
HDMI cable length:
Up to 20m (10m in / 10m out) 24AWG HDMI 2.0 cable recommend
Connector:
Input:
1x 19-Pin, HDMI Type-A, Female
1x 5-pin Micro USB, Female, Power or Firmware update
Output:
1x 19-Pin, HDMI Type-A, Female
1x 6-pin, DIP Switch, EDID management
Power adapter:
Input: 100-240VAC, 50/60 Hz
Output: DC5V/1A
Power adapter is not required when the HDMI source can provide the standard 5V bus power output
Environmental conditions:
Operating temperature: 32 to 104 degrees F
Storage temperature: -4 to 140 degrees F
Relative humidity: 20% to 90% RH (non-condensing)
TAA compliant
Certifications/Standards: FCC, CE, RoHS
Package Contents

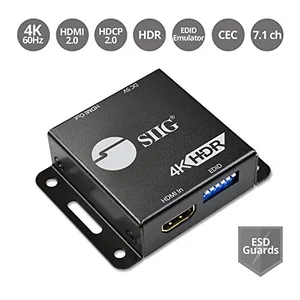

HDMI 2.0 EDID Emulator
Power Adapter
Quick Start Guide
Item Dimension ( L inchxW inchxH inch)
4 x 1 x 3 Weight
1 lb Warranty Information
3 years
